Lepin
All Names:
Lepin
Categories:
Pre Amplifier
Integrated
Monoblock
Push-pull
Production Years:
1986 (est) - 1992 (?)
The Lepin is a smaller form-factor integrated mono pre-amplifier. Exceptionally rare in the used markets there is little data on years produced or numbers made.

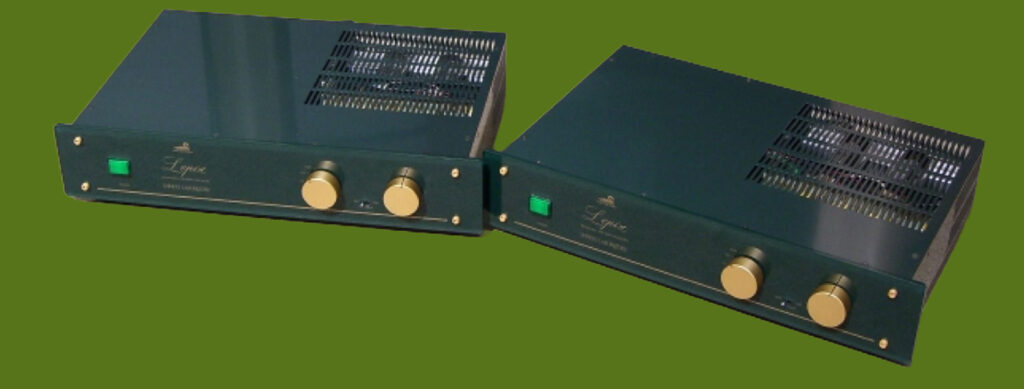

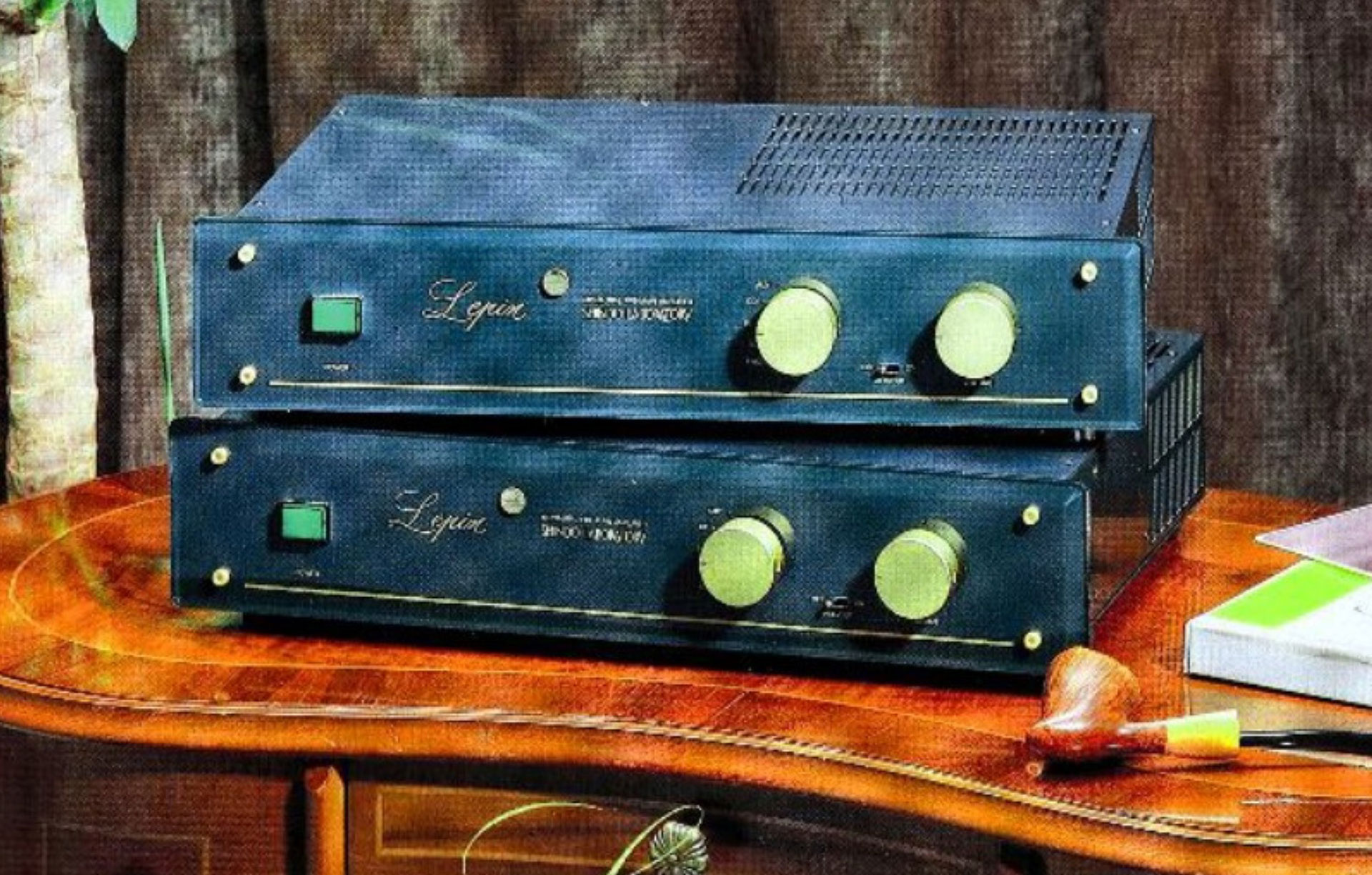

Shindo Lepin integrated push-pull monoblock amplifiers, 1991 advertisement

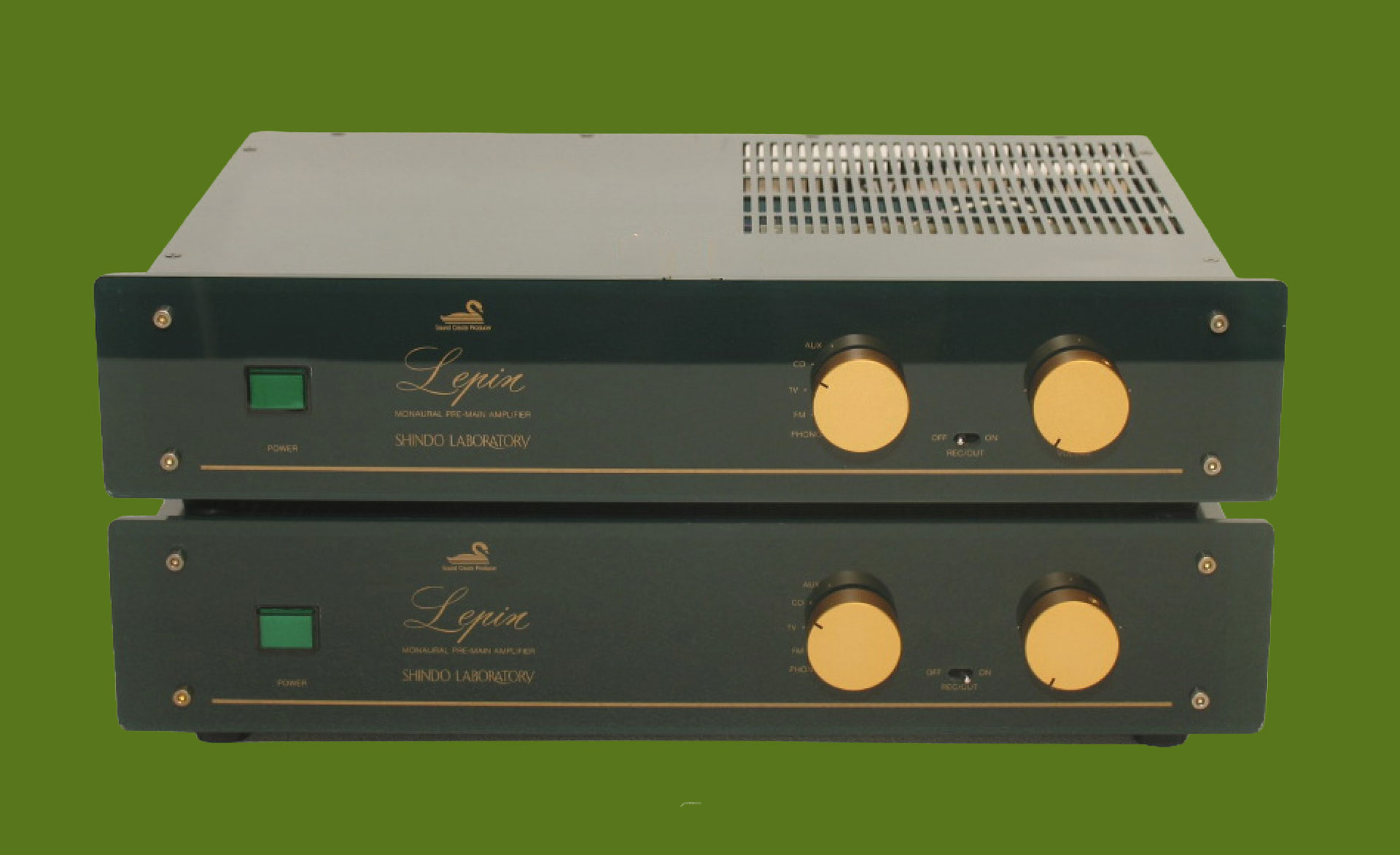

Shindo Lepin integrated push-pull monoblock amplifiers, circa 1991

Shindo Lepin integrated push-pull monoblock amplifiers, circa 1991
Name:
Lepin
Categories:
Pre Amplifier
Integrated
Monoblock
Push-pull
Years Produced:
1986 (est) - 1992 (?)
MSRP:
¥560,000 (pair) (Japan 1991 )

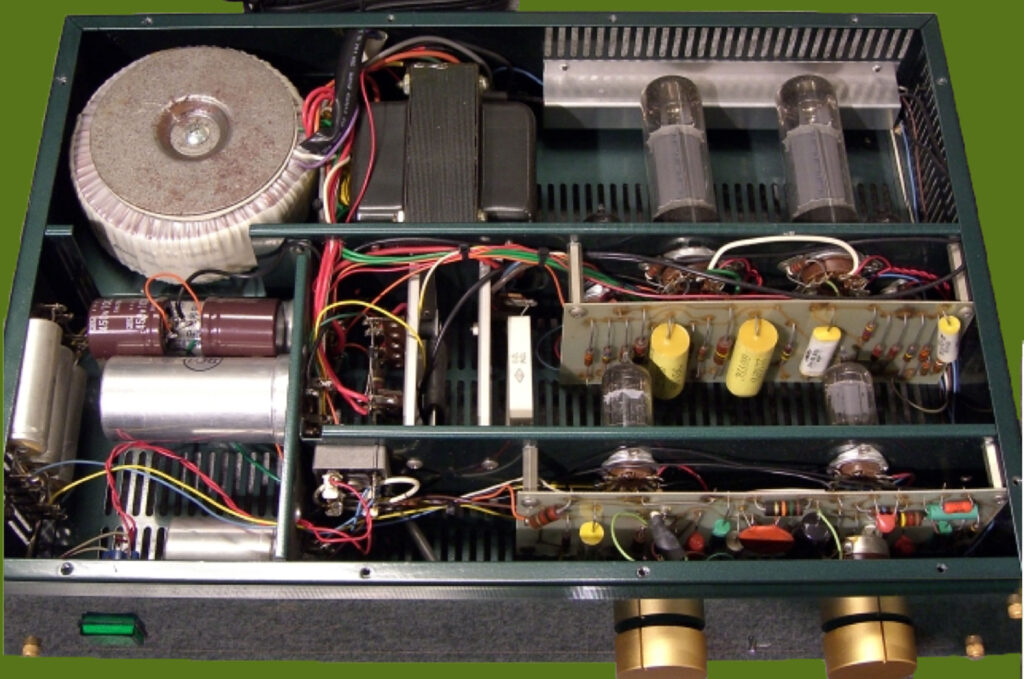

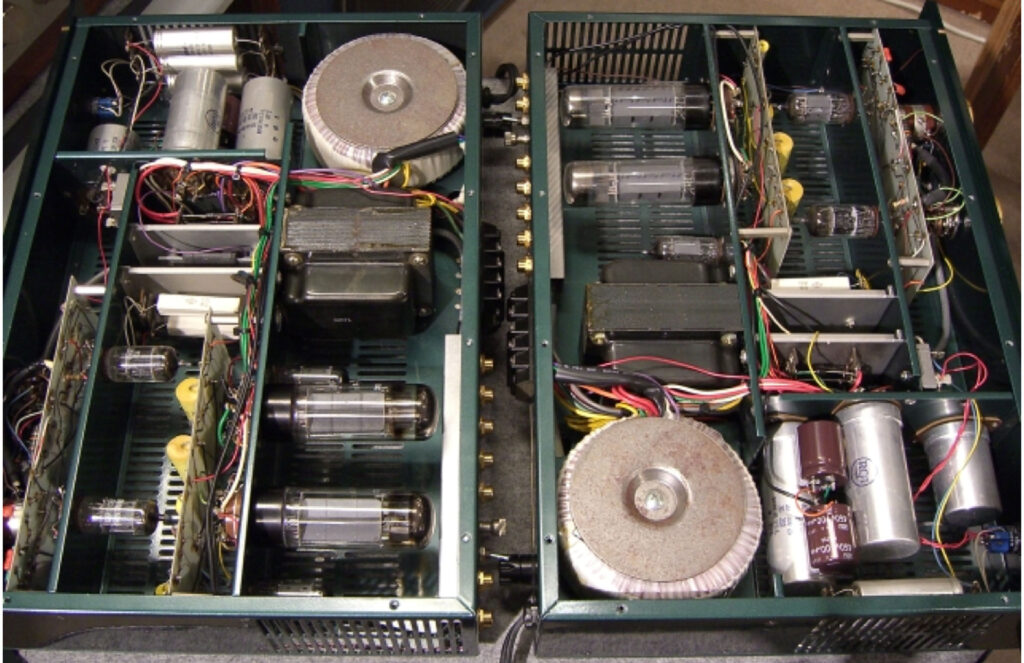

The mono-block Lepin provides 25 W speaker output in Class A. A front-plate switchable REC OUT allows it to be used as a pre-amplifier. Solid-state power rectification. Generous inputs include 2 x phono, both appear to be moving magnet. The interior of the chassis is well laid out but very crowded.
The image used in Shindos' 1990-91 advertising seems to be of older units: Note the lack of the Swan logo present on most Shindo products post 1987. This may indicate they still had units in stock from years earlier, a sign that they had not sold well.
Note that the gold-plated RCA pin jacks in the images appear to be a user modification.
Description, Shindo Laboratories marketing materials, 1991:
The right thing.
This integrated amplifier was created purely in pursuit of what an amplifier should be. Every single component was carefully selected to meet our high standards. The ideal form has been realized in terms of specifications and design. The rich tone and atmosphere created are unique to this product. It is the ideal integrated amplifier.
It's about time. The long awaited integrated amplifier is finally here.
The power transformer was carefully selected from among many overseas options, specifically from Europe
Specifications, Shindo Laboratories marketing materials, 1991:
• Vacuum tubes:
2 x 6CA7
4 x ECCC83/12AX7
• Power requirements: 100V 40W
• Output: 25W in Class A
• SNR: 90dB
Additional Details:
• Toroidal power transformer

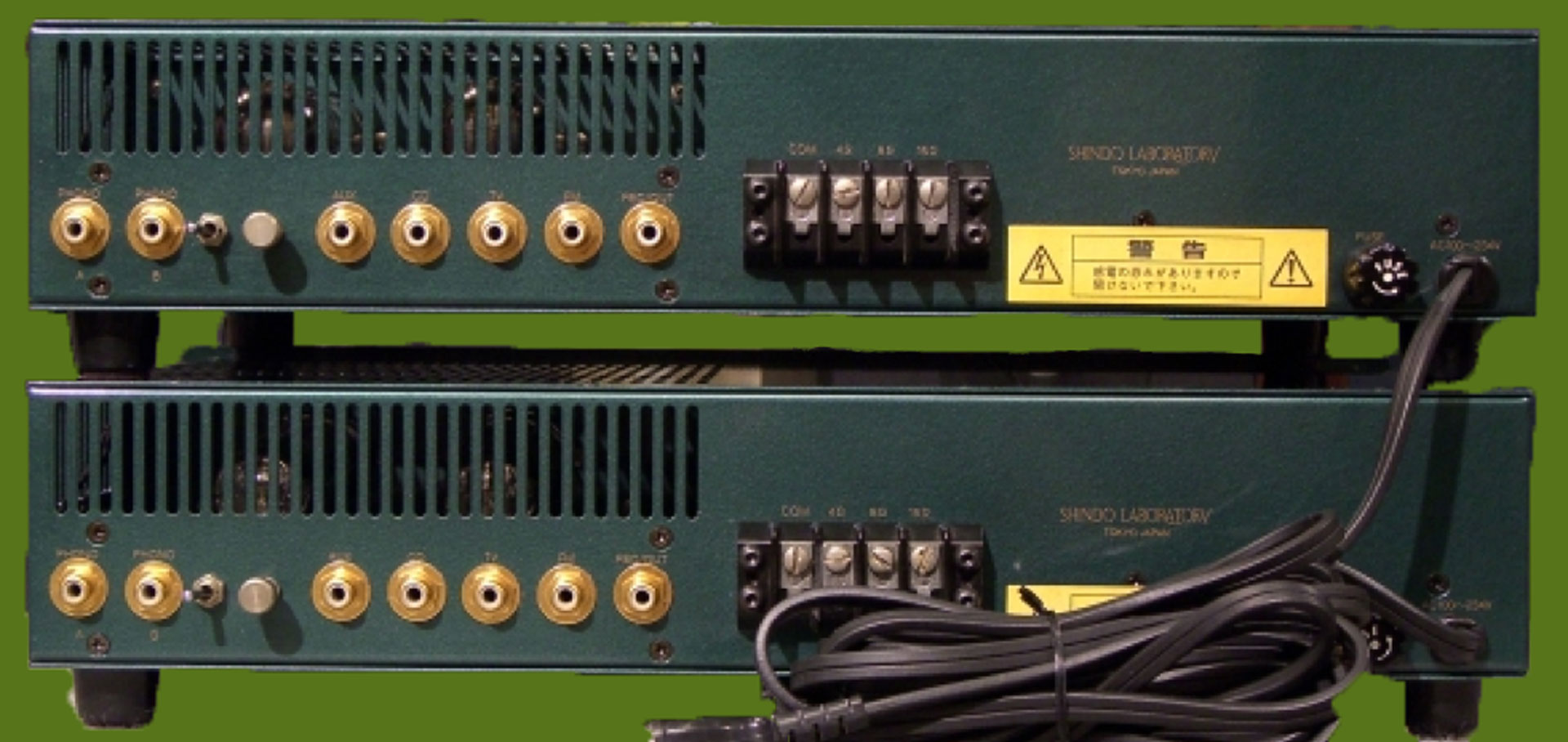

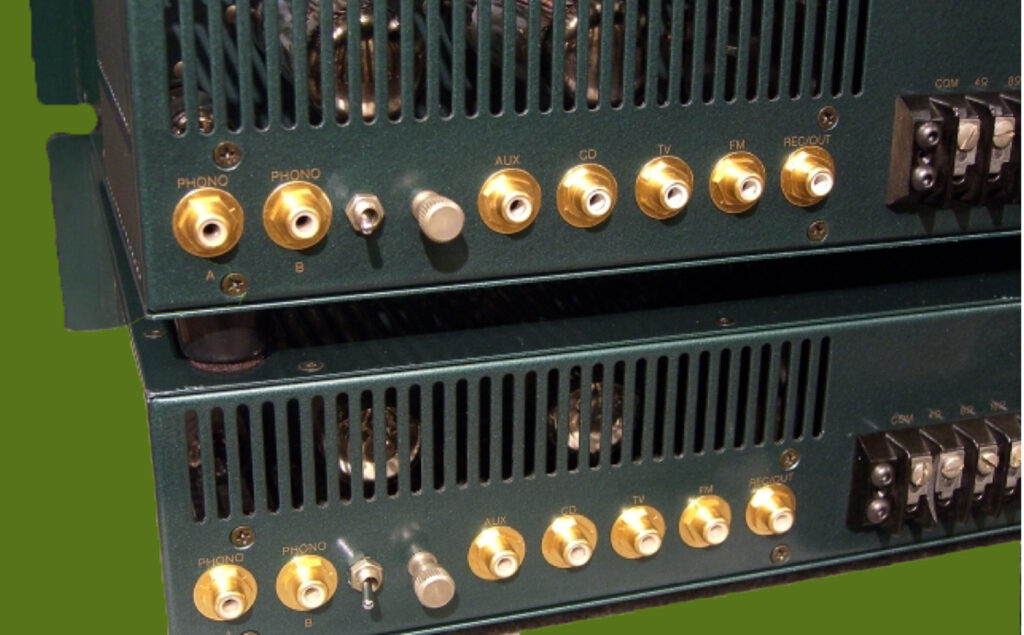

• Inputs:
• Phono x 2, RCA gold plated, switchable (back plate) , no visible SUT
• AUX, CD, TV, FM
• Outputs: REC/OUT, RCA gold plated (switchable on/off, front plate)
• Speaker Outputs: 4, 8, and 16 Ohm terminal bar speaker outs
• Captive power cable
