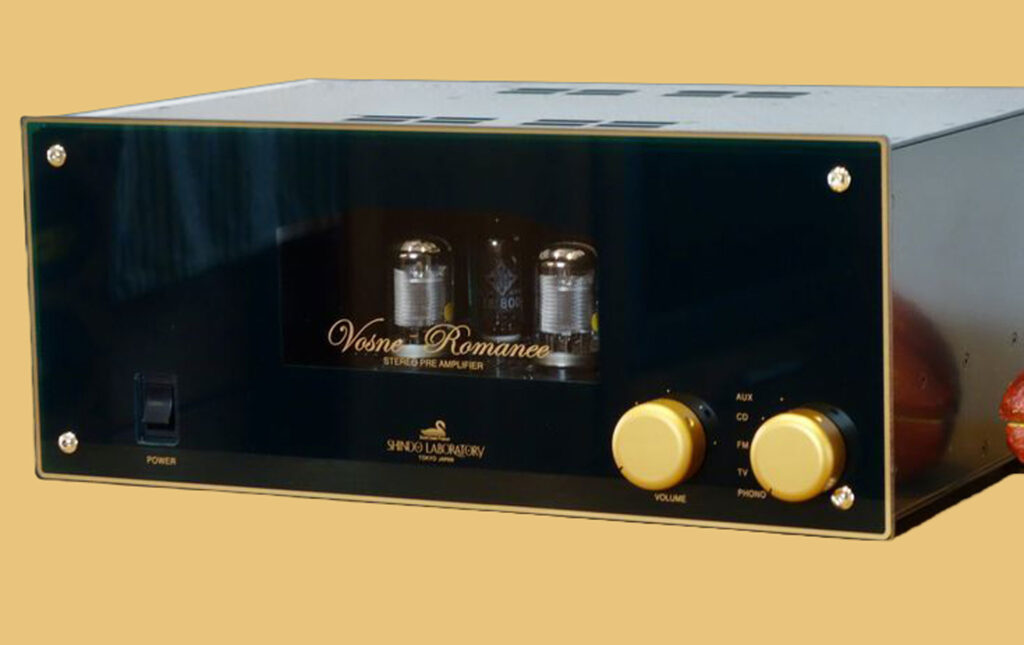

Description:

None available

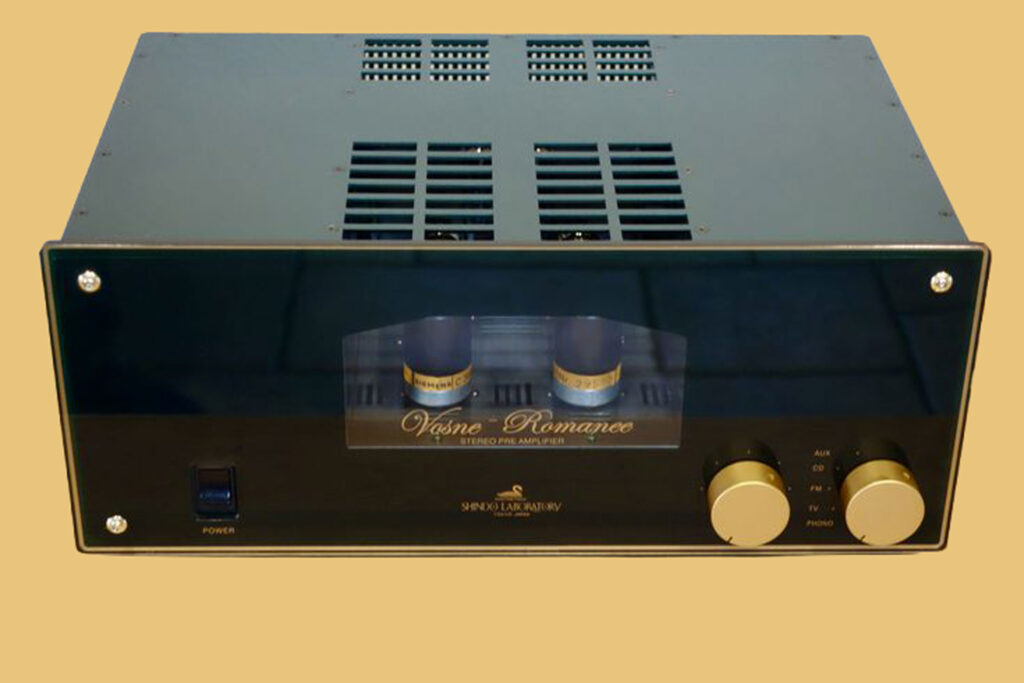

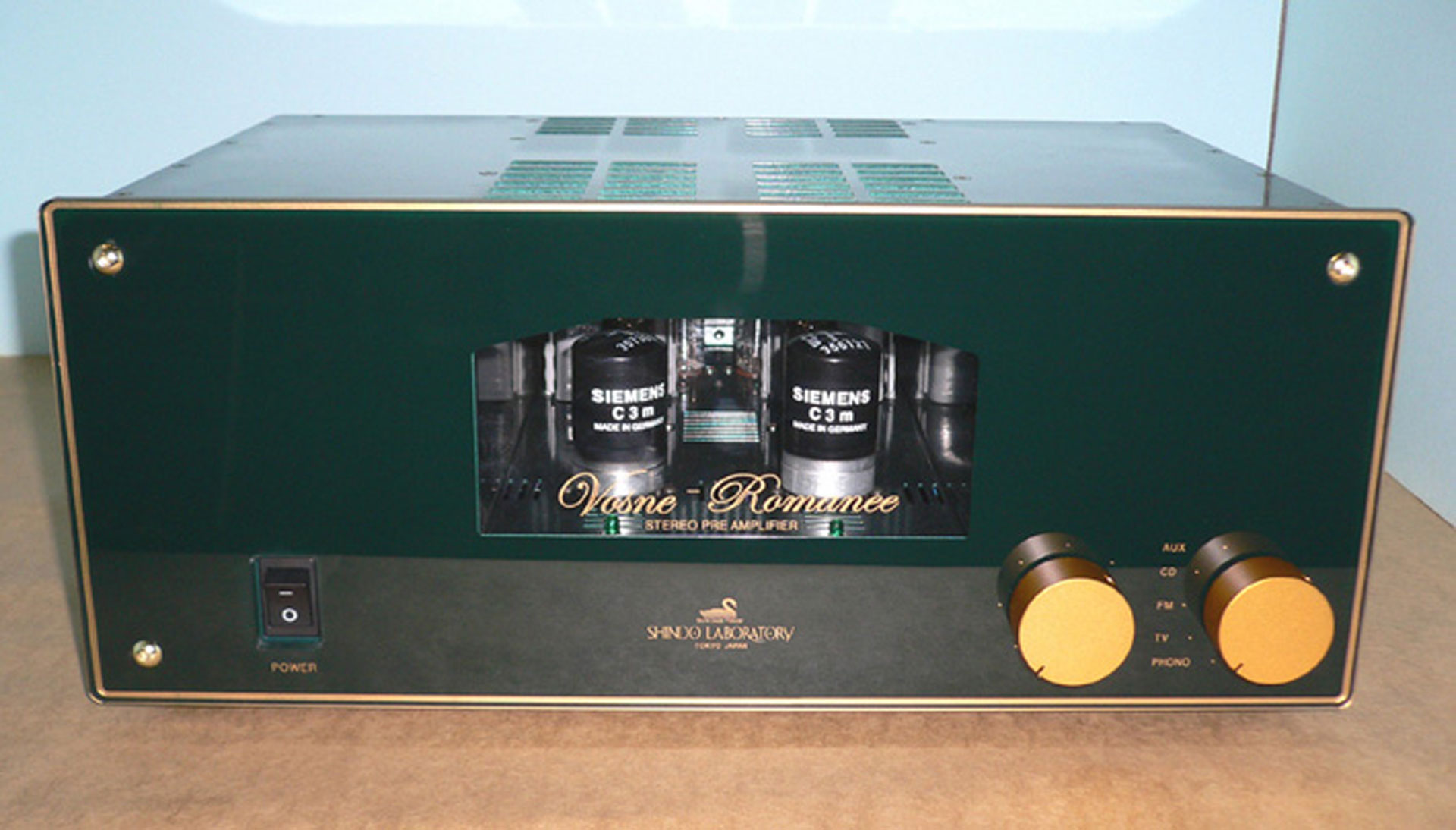

Specifications, Shindo website, 2006:

• Input Sensitivity/Impedance:
Phono MC (pin jack): 0.2mV / 2-100Ω.
Phono MM (pin jack) 3mV/100kΩ
Input selectable

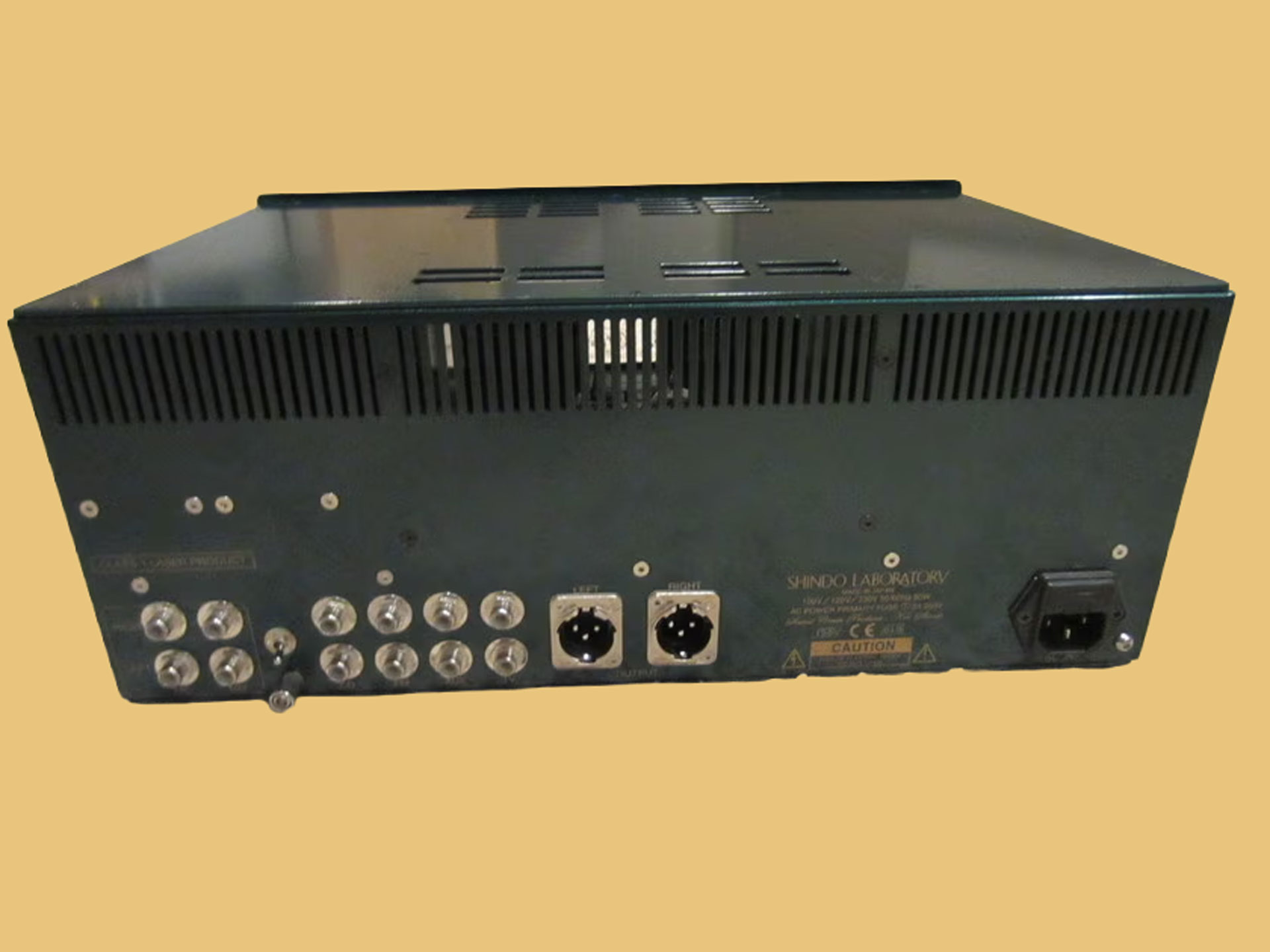

• Other inputs: AUX, FM, TV, CD (pin jack).
• Signal-to-noise ratio: 120dB, line section non-NFB.
• Frequency response: 20Hz - 30KHz
• Output level/impedance: 8V/600Ω (XLR jack)
• Power consumption: 100V-80W
• Power supply: AC100V, 50/60Hz
• Dimensions: W 400 x H 165 x D 270 mm
• Weight: 10.5kg.

Additional Details:

Power:
• Custom Denki (Japanese) mains transformer
• 2 x Philips ECG 6x4 full-wave rectifiers, choke followers

Phono Stage:
• Philips ECG 6072 dual-triode, shielded, 1 per channel
• Philips ECG 6189, 1 per channel
• SUT: custom-wound Lundahl moving-coil step-up transformers

Drive Stage:
• Tesla EF184, 1 per channel (pentode in triode mode, second and third grids bridged to the plate)
• Siemens C3m, 1 per channel, pentode as resistance-coupled phase inverter

Output Stage:
• Encased Vintage transformers, unknown manufacturer

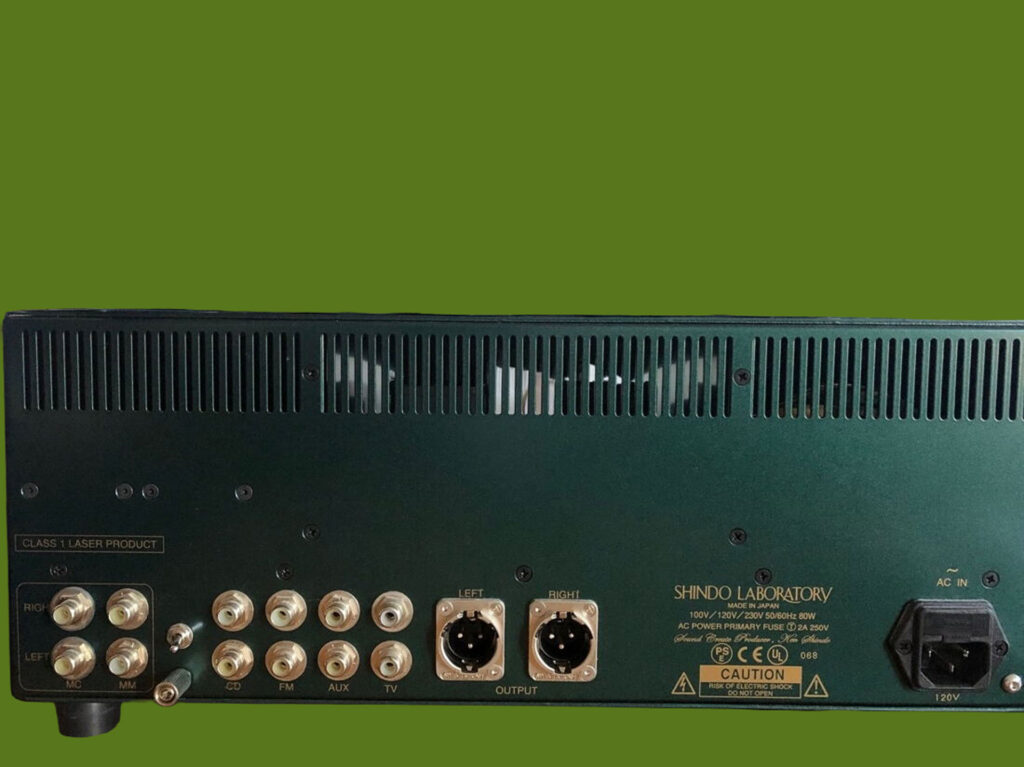

• XLR Output jacks

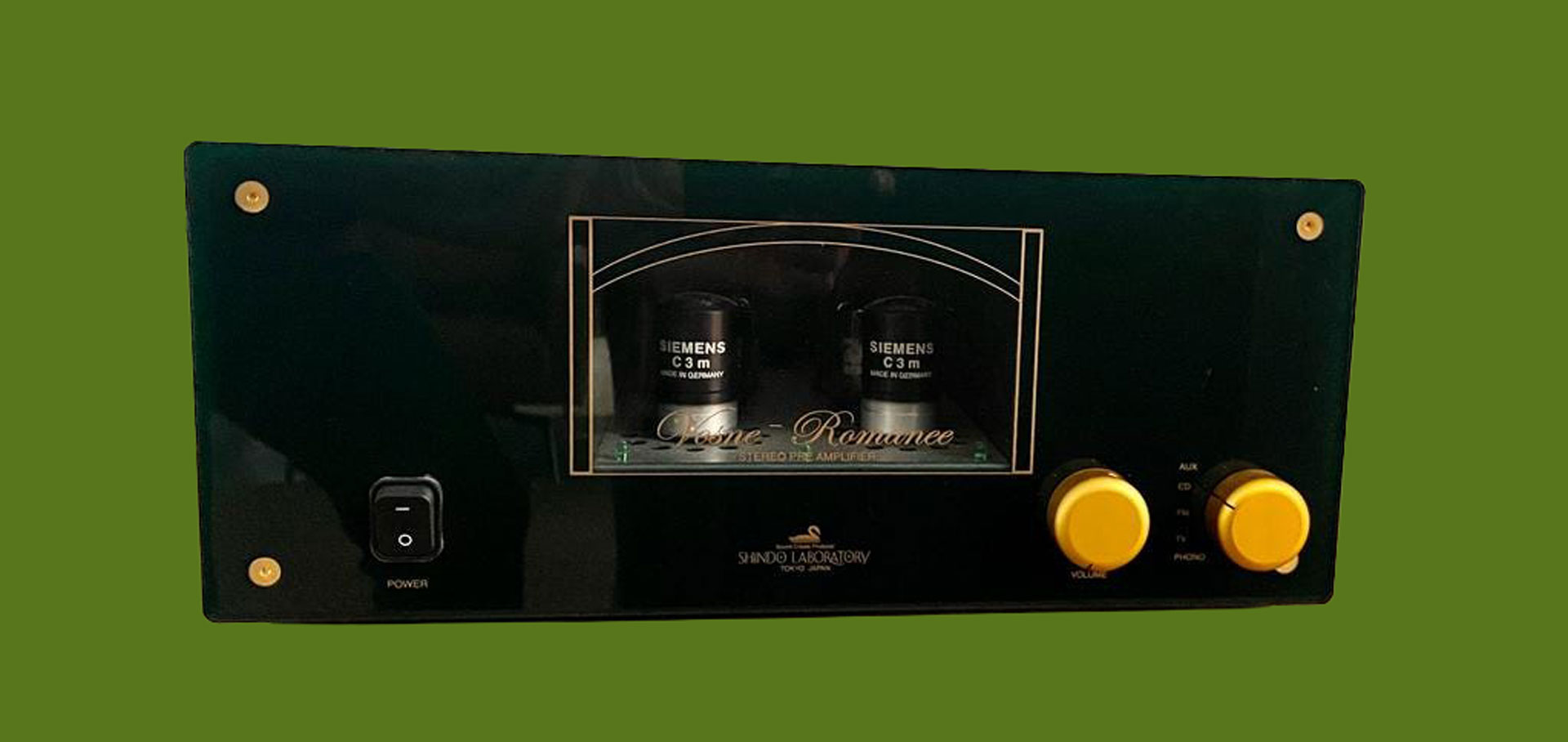

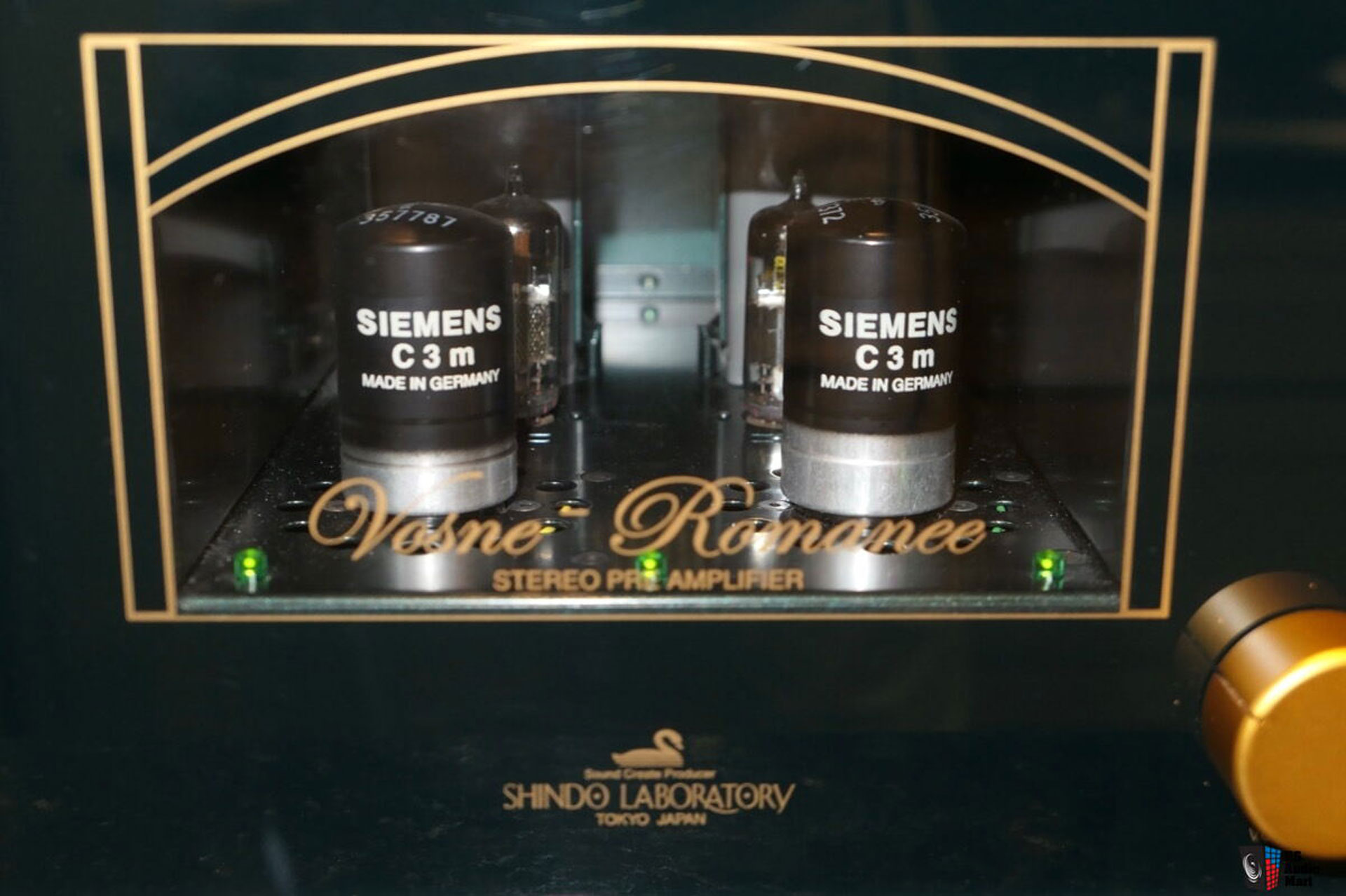

The second variation changes the front plate and swaps out the Tesla EF184s in the drive stage for Telefunken EF800s. The window and proscenium arch are now outlined in gold.

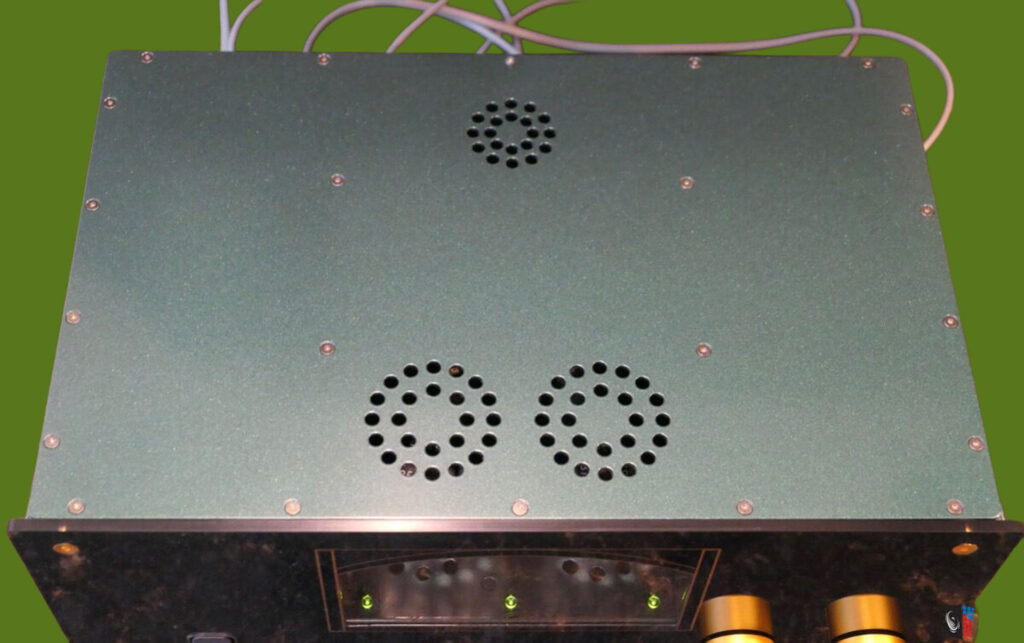

A later variation of this version changed the knobs to cones (circa 2012) and added through-plate LED lights, with some reports of the older knobs being used on the plates with LEDs as well.

Description:

None available

Specifications, Shindo website:

• Input Sensitivity/Impedance:
Phono MC (pin jack): 0.2mV / 2-100Ω.
Phono MM (pin jack) 3mV/100kΩ
Input selectable
• Output (XLR Jack) Impedance: 8V/600Ω.
• Phono Max. Input Voltage：1,200 mV.
• Total Harmonic Distortion：0.01%.
• Signal to Noise Ratio：119 dB.
• Frequency Responce：20 – 20,000 Hz.
• Power Consumption：80W
• Power Requirements: 220V – 230V 50/60 Hz.
• Dimensions: W 400×H 165×D 270 mm.
• Weight：10.5 Kg.

Additional Details:

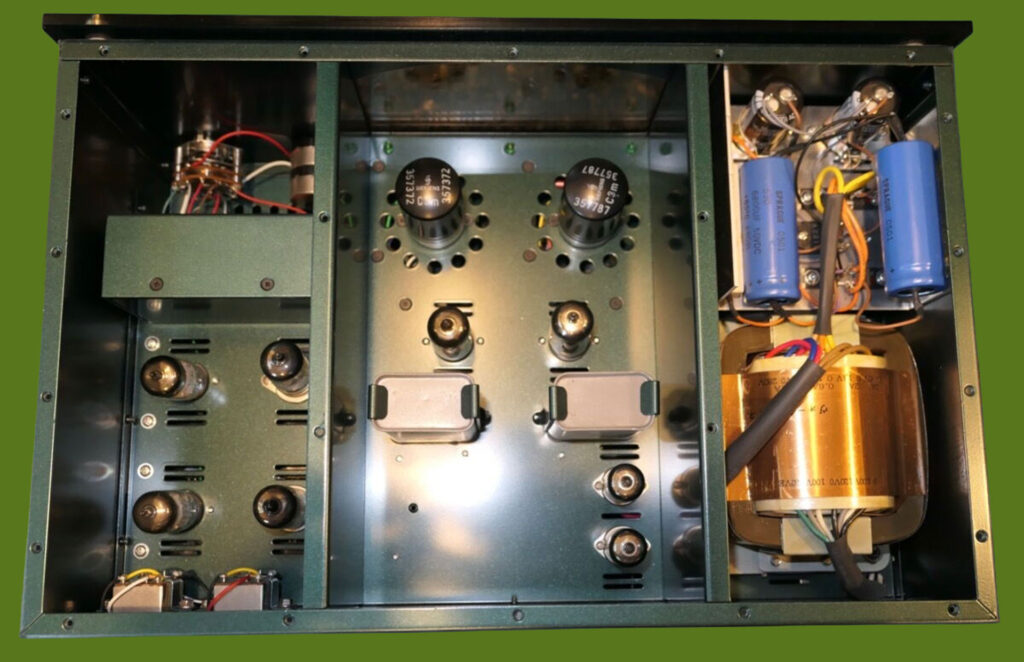

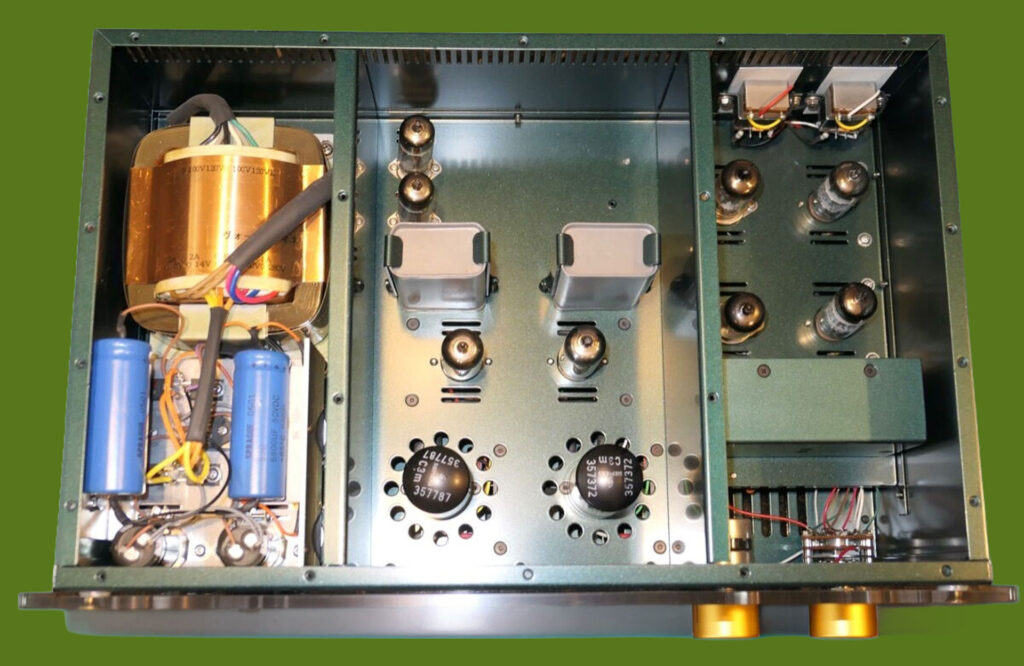

Power:
• Custom Denki (Japanese) mains transformer
• 2 x Philips ECG 6x4 full-wave rectifiers, choke followers

Phono Stage:
• SUT: custom-wound Lundahl moving-coil step-up transformers
• Phono (per channel)
Philips ECG 6072 dual-triode, shielded
Philips ECG 6189

Drive Stage:
• Telefunken EF800, 1 per channel (pentode in triode mode, second and third grids bridged to the plate)
• Siemens C3m, 1 per channel, pentode as resistance-coupled phase inverter

Output Stage:
• Encased Vintage transformers, unknown manufacturer
• XLR Output jacks

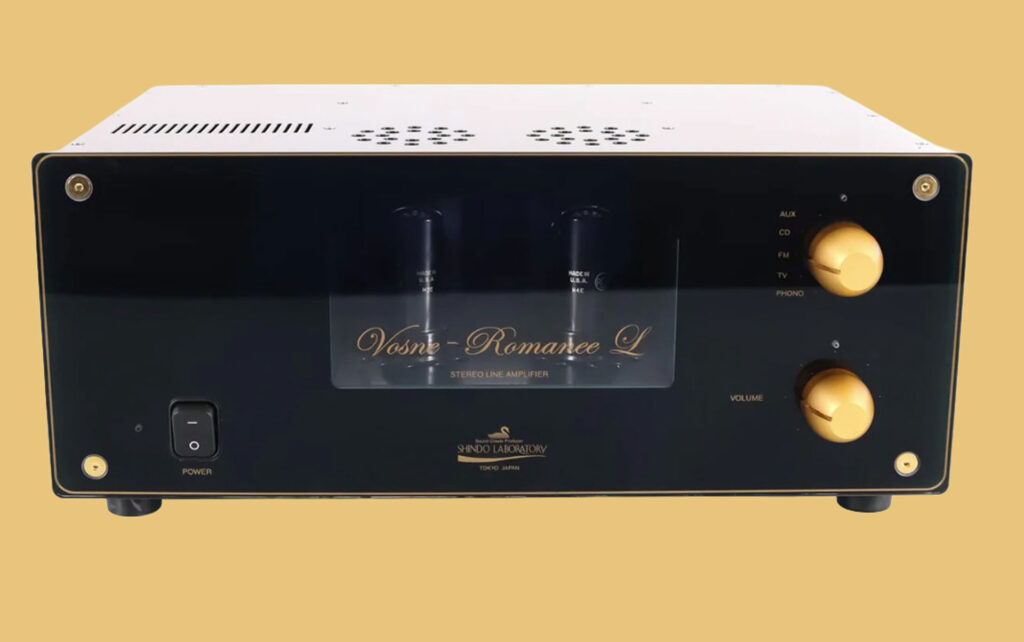

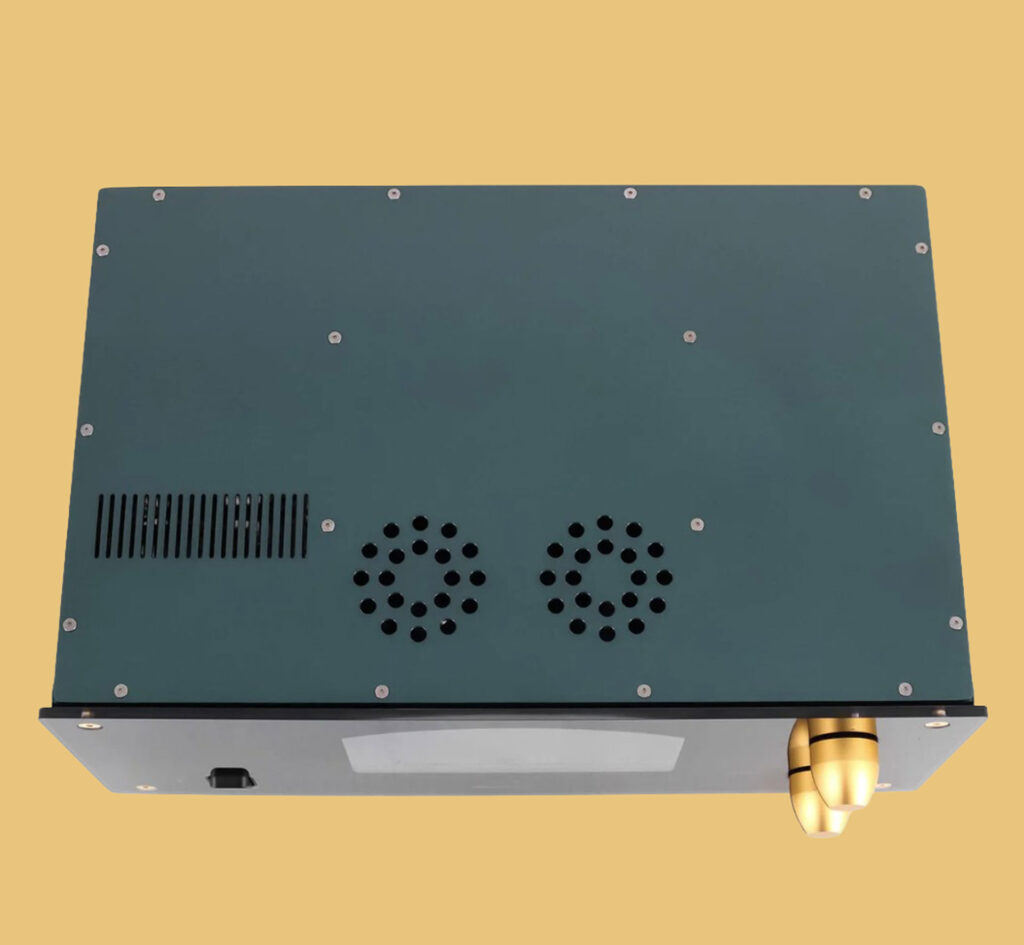

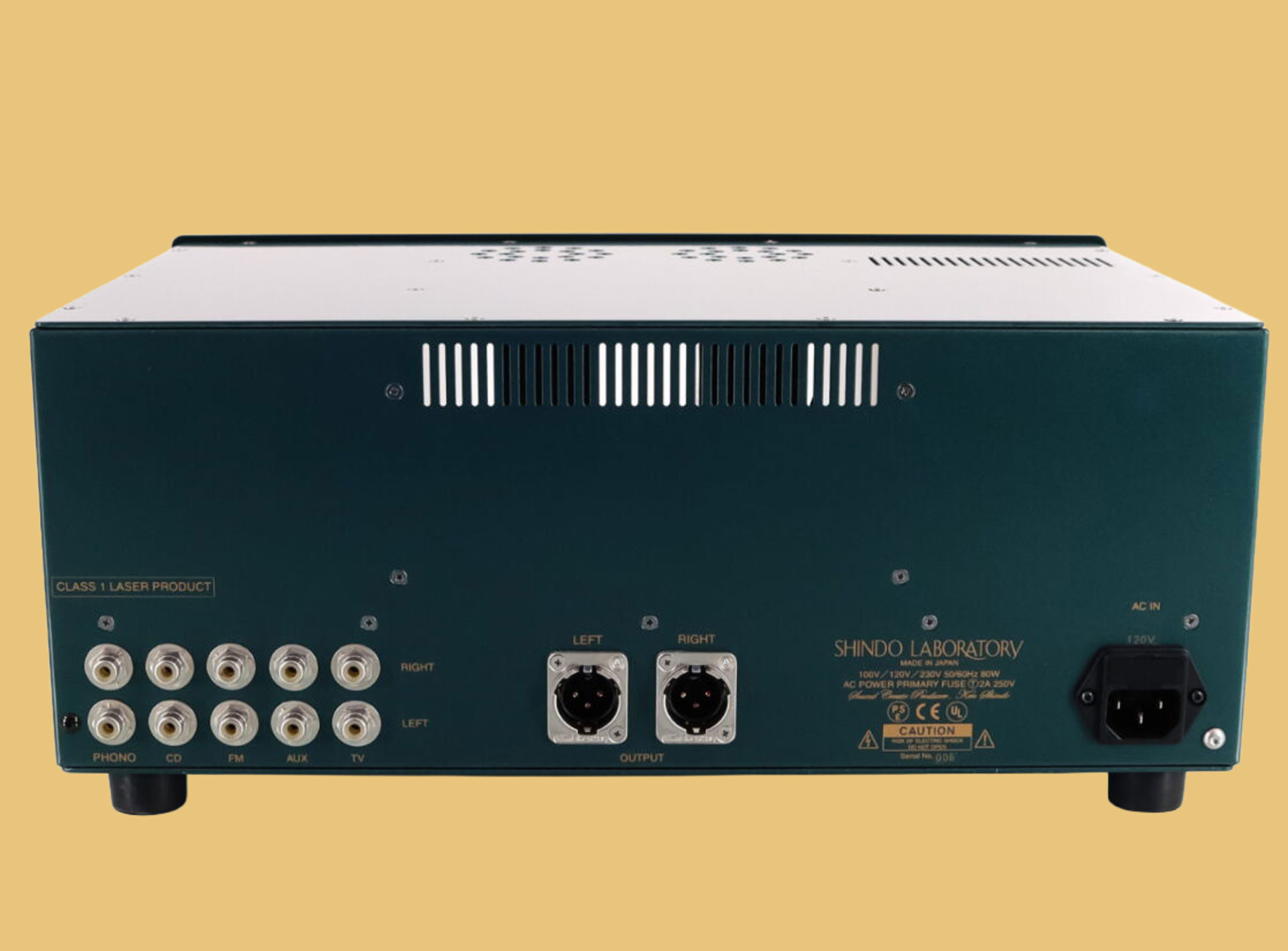

Announced in 2013 and available in 2014 the Vosne-Romanee - L removes the phono inputs but retains the 'PHONO" lable, RCA inputs and the grounding pin. The drive stage tubes have changed to 6V6s with 6AW8As

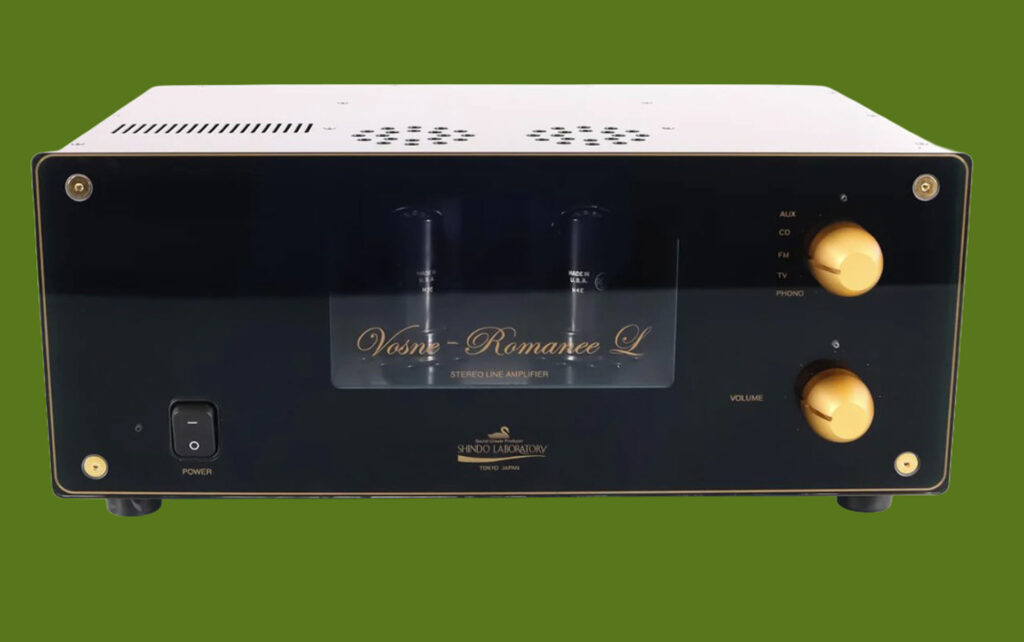

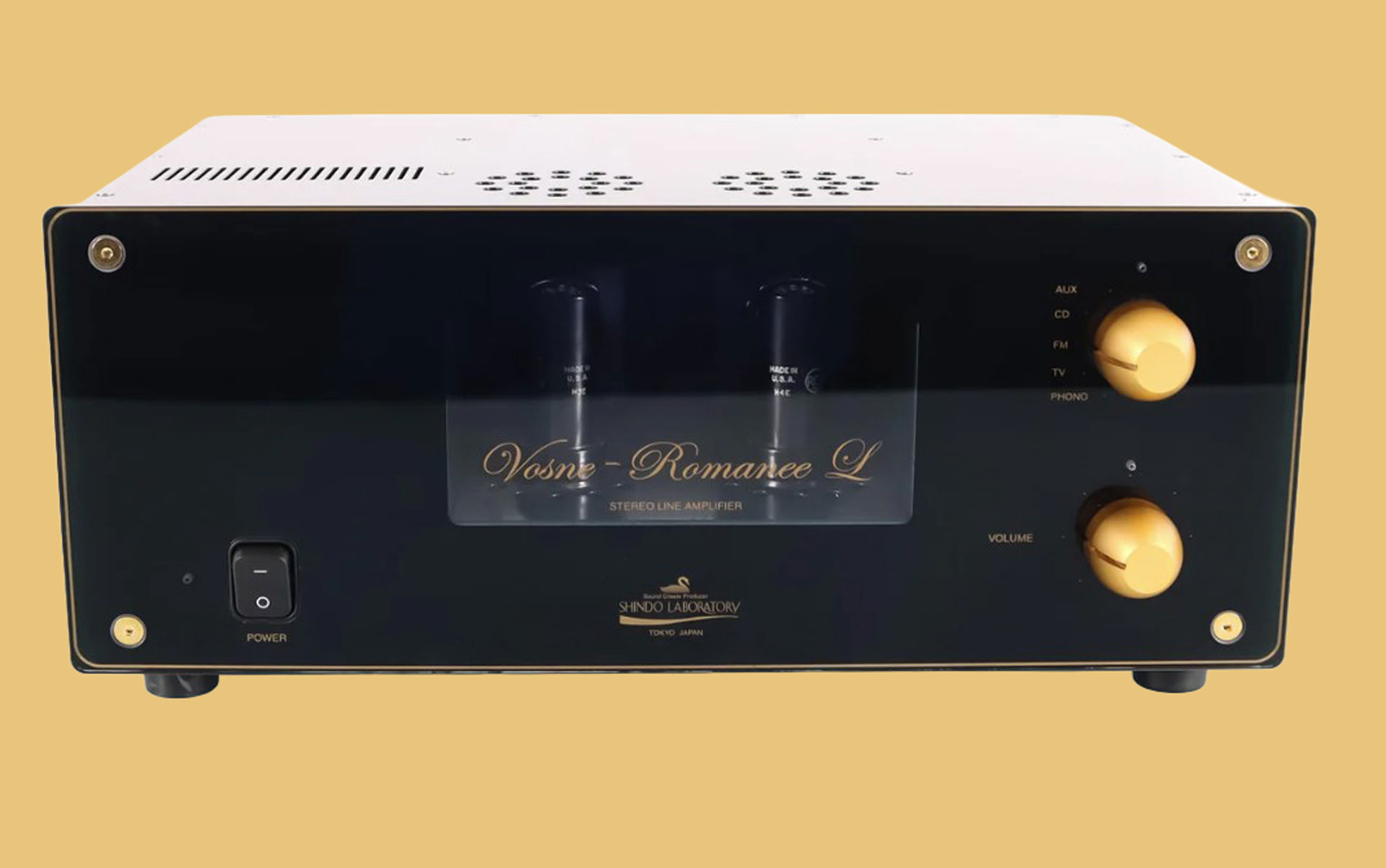

The vertical front knob layout is the easiest way to identify the L model though the text on the front plate is changed as well.

Description:

None available

Specifications , Shindo website, 2014:

• Input Sensitivity/Impedance: 100kΩ
• Other Inputs: PHONO, AUX, FM, CD (pin jack).
• S/N Ratio: 120dB, No NFB at input
• Frequency Response: 20Hz - 30,000Hz
• Output Level/Impedance: 8V/600Ω (XLR Jack)
• Power Consumption: 100V-80W
• Power Supply: AC100V, 50/60 Hz
• Dimensions: W 400 × H 165 × D 270 mm.
• Weight: 11.4kg.

Additional Details:

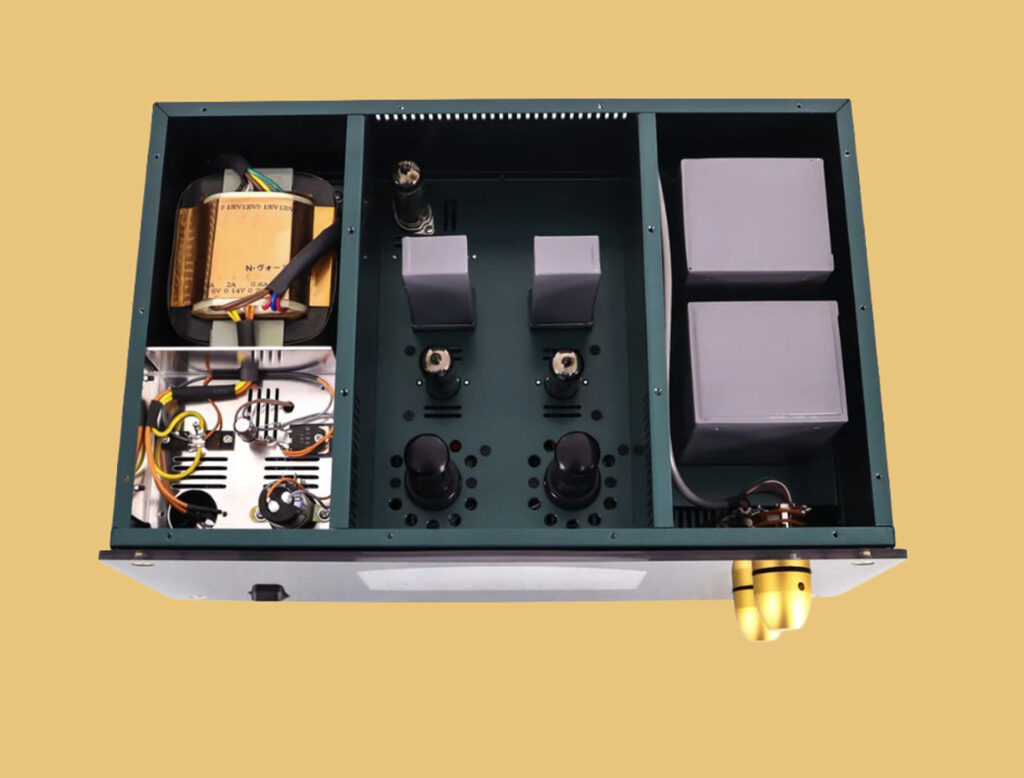

Power transformer supports 100/120/230V 50/60Hz (internal wiring change required)

Power:
• Custom Denki (Japanese) mains transformer
• 2 x Philips ECG 6x4 full-wave rectifiers, choke followers

Drive Stage:
• Philips ECG 6AW8A, 1 per channel
• CRC-JAN 6V6 metal, 1 per channel

• Encased Vintage output transformers, unknown manufacturer
• XLR Output jacks
