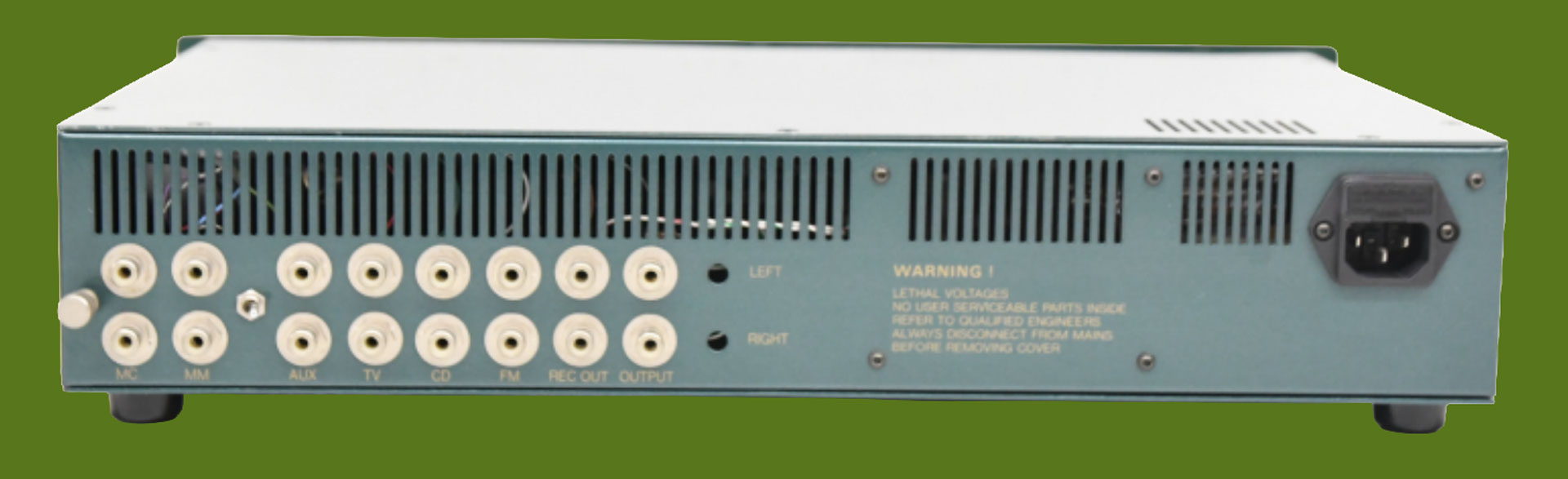

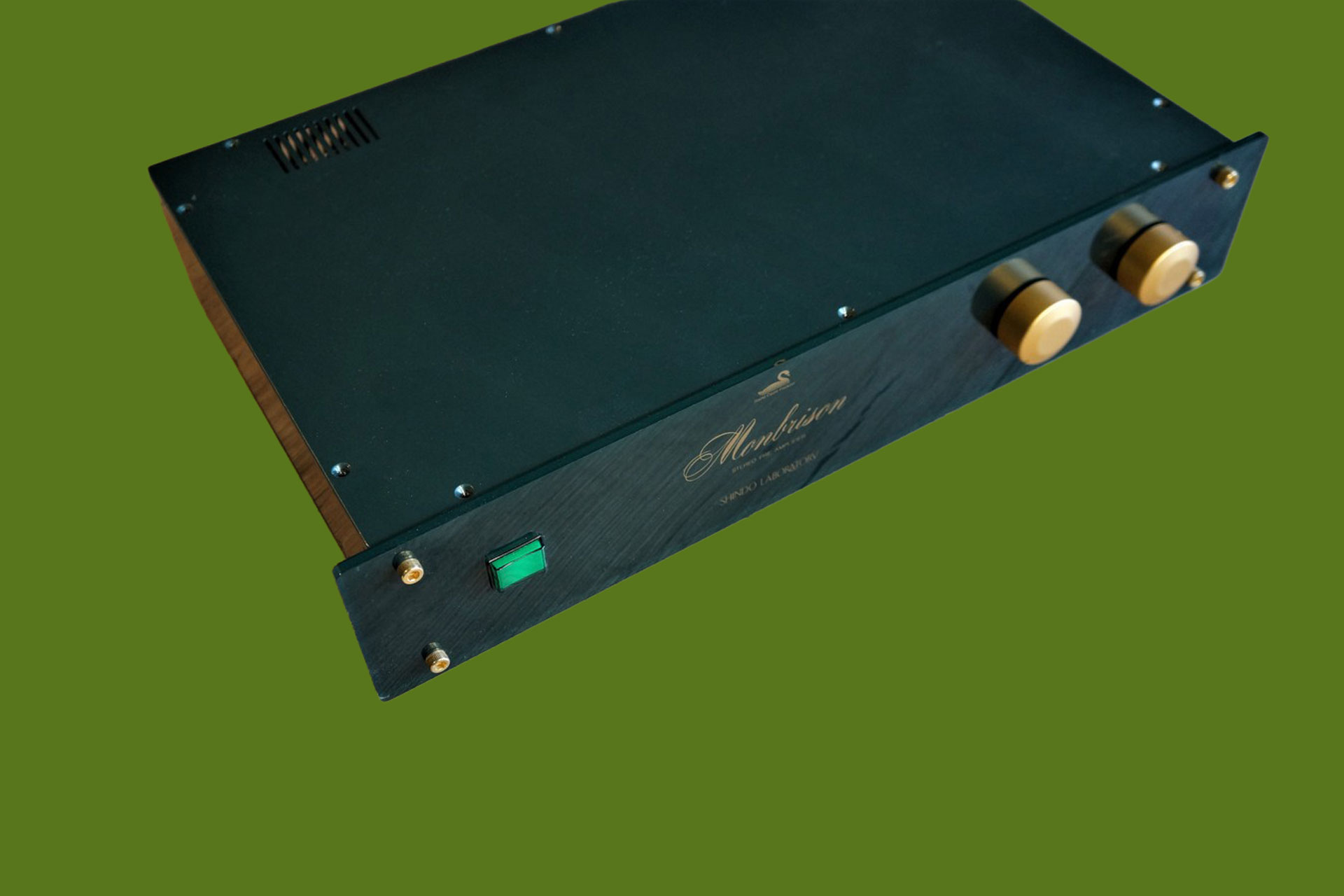

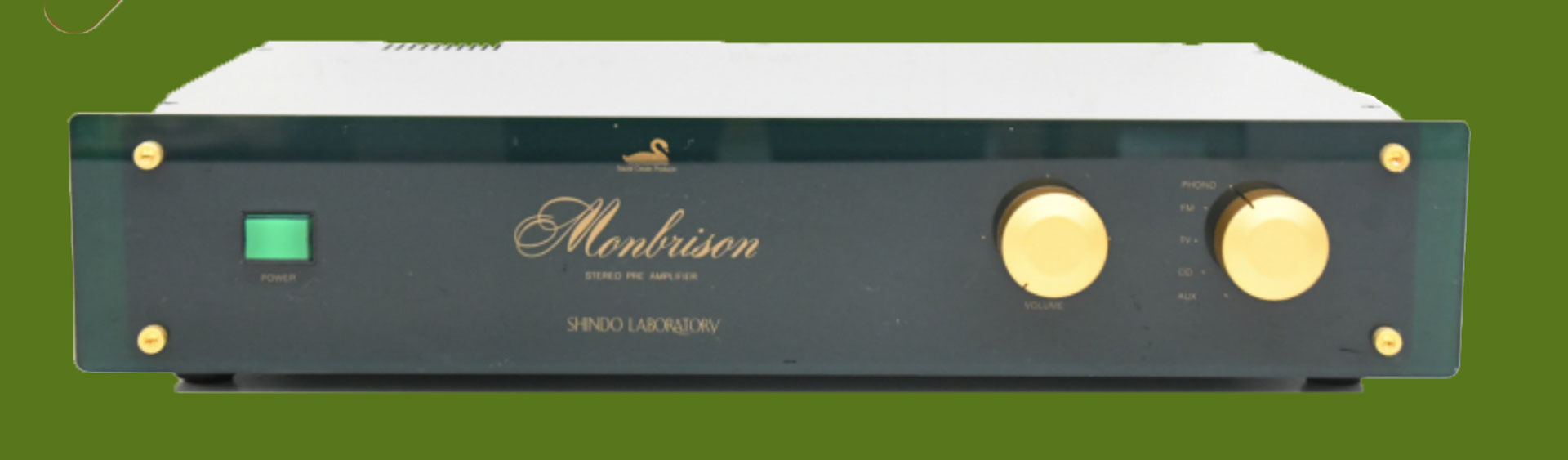

Description, Shindo Laboratory website 1999:

Its simple design exudes an air of elegance, yet it prioritizes functionality—incorporating an output transformer for stable 600-ohm low-impedance output (matching our top-tier models), a step-up transformer for MC cartridges, and support for sources such as CD players. This is a high-quality preamplifier offering enhanced sound performance; we invite you to compare it with other preamplifiers in the same price range.

Specifications, Shindo Laboratory website 1999:

• Phono MC (Balanced, XLR jack): 0.2mV / 2Ω–600Ω
• MM (RCA jack): 3mV / 100kΩ
• switchable between 2 inputs)
• Other Inputs: AUX, FM, TV, CD (RCA input jacks)
• S/N Ratio: 119dB
• Frequency Response: 20Hz – 20kHz
• Output Impedance: 10V / 600Ω (RCA jack)
• Power Consumption: 100V – 50W
• Power Supply: AC100V, 50/60Hz
• Vacuum Tubes Used:
2 x 6267
3 x ECC82
1 x 6BM8
1 x 6X4
• External Dimensions: W450 x H90 x D300 mm (per unit)
• Weight: 5kg

Additional Details:

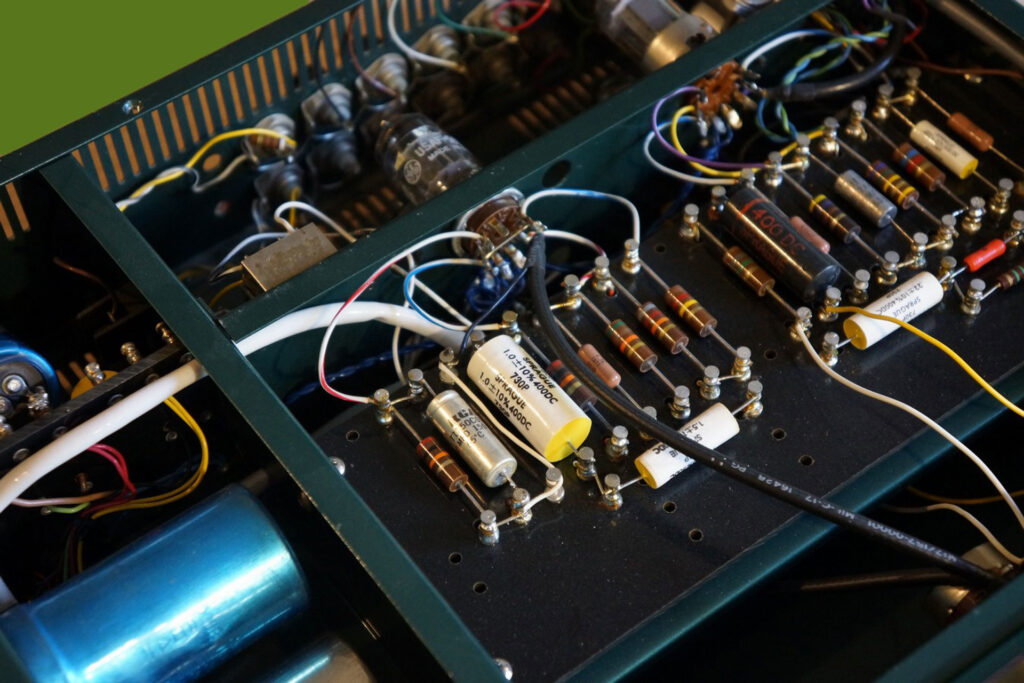

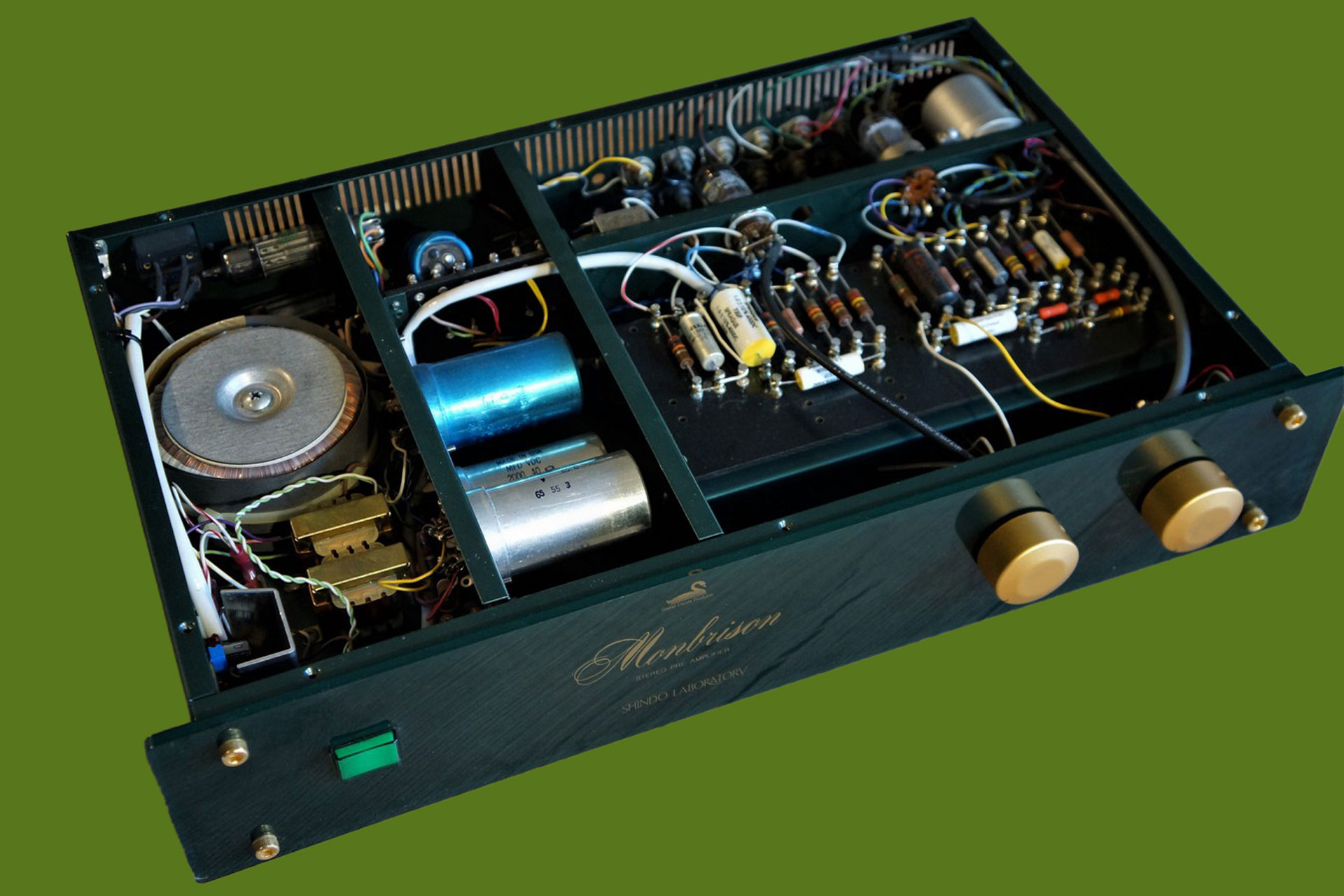

The following tube configuration can be assumed from images:
2 x EF86/6267 - phono stage
1 x ECC82/12AU7 - phono stage
2 x ECC82 - line stage

1x 6X4/EZ90 - rectifier
1x ECL82/6BM8 - power regulator

Its further likely that the tube complement changed before the 2002-2005 batches began.

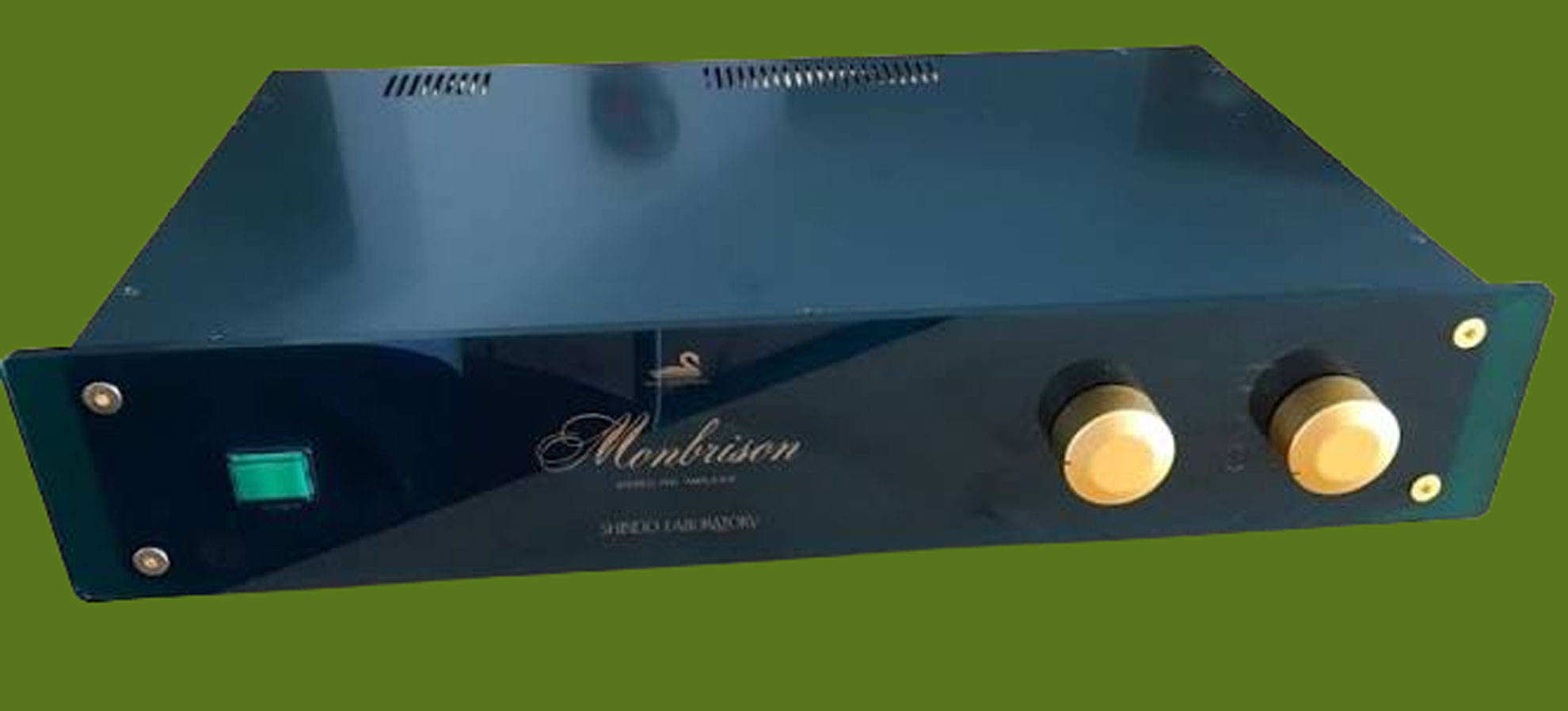

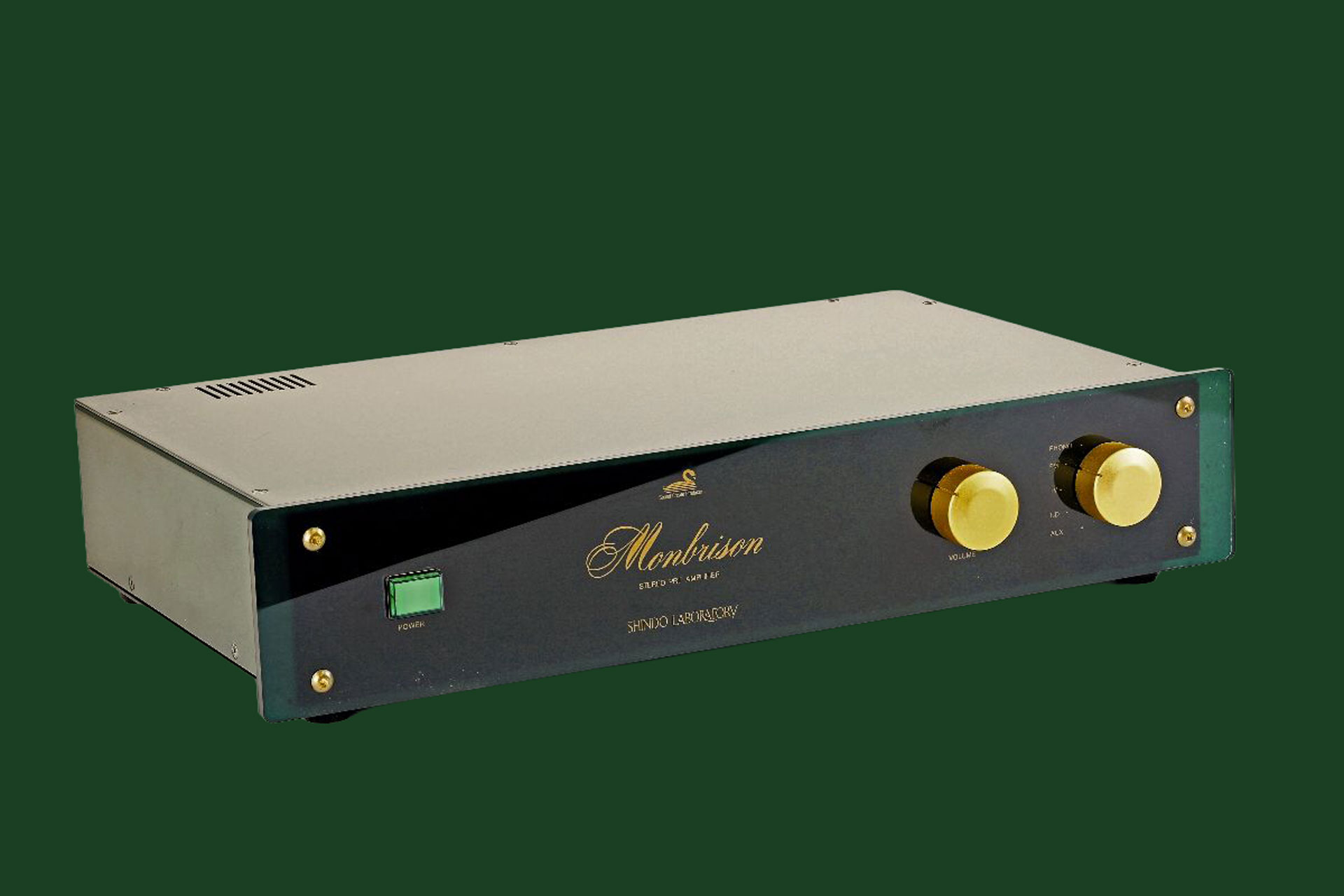

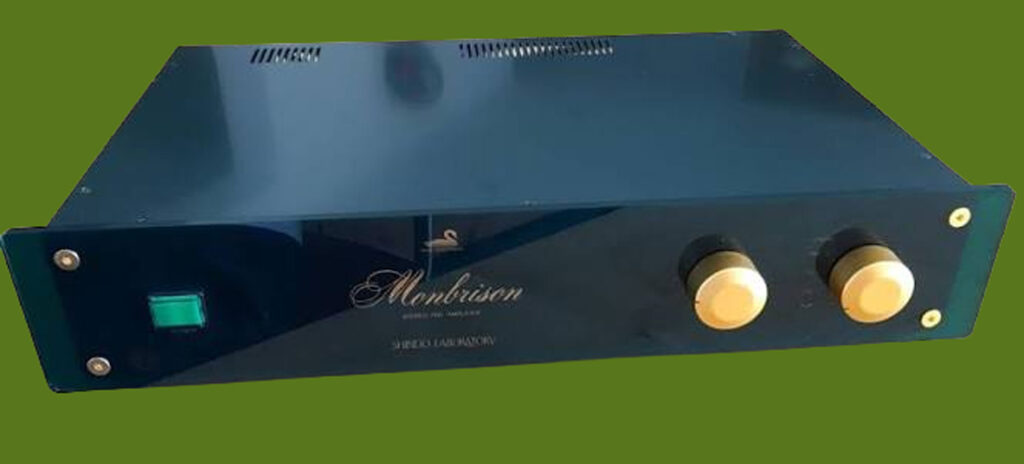

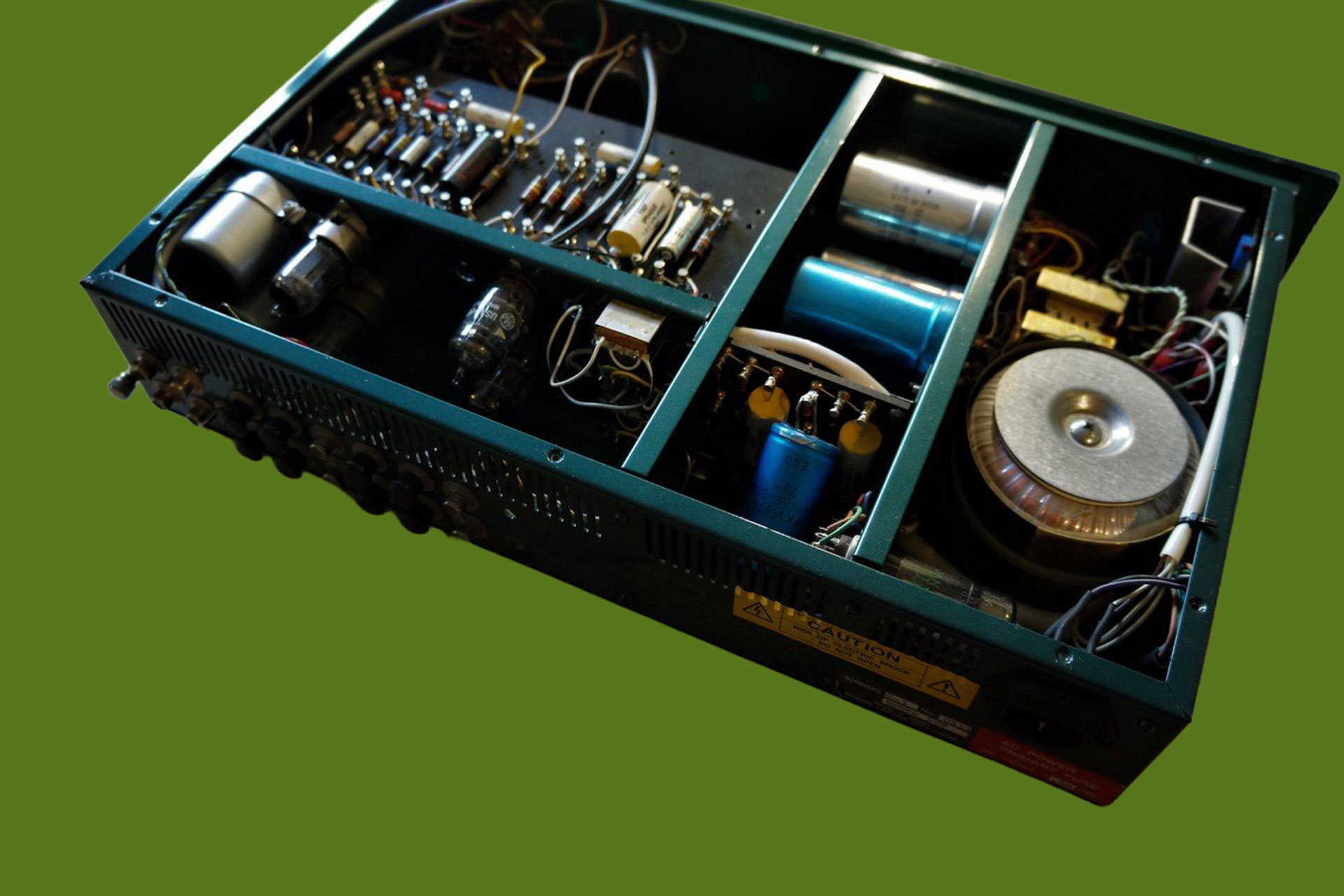

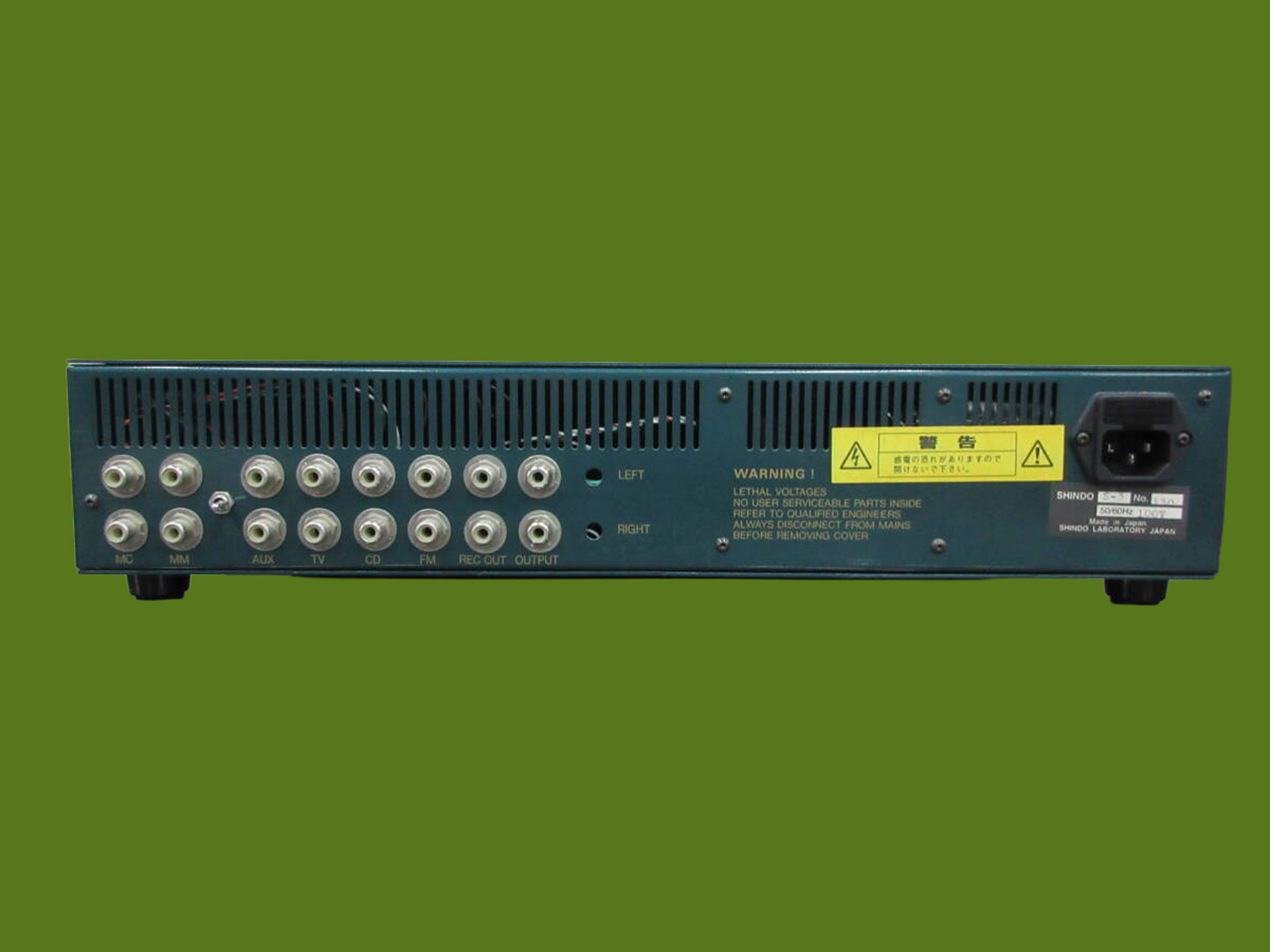

In 2002 the description on the Shindo website is changed to remove mention of the 600-ohm low-impedance output transformer "matching our top-tier models." The technical specifications indicate it is replaced with a 5kΩ output transformer.

The specific tube lineup is removed from the technical details as part of Shindo's site-wide purge of tube listings at this time and multiple tube complements have been reported in this chassis type in the wild. The documented variations are listed below.

Description, Shindo Laboratory website, Feb 2002:

The simple design exudes an elegant atmosphere, just like our higher-end preamplifiers. It has a built-in step-up transformer for MC cartridges, and also supports playback of CDs, etc. We pursued functionality while maintaining a beautiful design. Furthermore, we have upgraded the sound quality. This is a high-quality preamplifier. Please compare it with other preamplifiers in the same price range.

Specifications, Shindo Laboratory website, Feb 2002:

• Phono MC (Balanced, XLR jack): 0.2mV / 2Ω–600 Ω
• MM (RCA jack): 3mV /100kΩ
• switchable between 2 inputs)
• Other Inputs: AUX, FM, TV, CD (RCA input jacks)
• S/N Ratio: 119dB, line section non-NFB
• Frequency Response: 20Hz – 20kHz
• Output level/impedance: 10V/5kΩ (pin jack)
• Power Consumption: 100V – 50W
• Power Supply: AC100V, 50/60Hz
• External Dimensions: W450 x H90 x D300 mm (per unit)
• Weight: 5kg

Additional Details:

Multiple tube complements have been reported in these units (this list is not exhaustive):

Variant 1
2 x EF86/6267 (phono stage)
2 x ECC83/12AX7 (phono stage)
2 x ECC82/12AU7 (line stage)
1x 6X4/EZ90 Power Rectifier
1x ECL82/6BM8 Power Regulation

Variant 2
2 x EF86/6267 (phono stage)
1 x ECC82/12AU7 (phono stage)
2 x ECL84 (line stage)
1x 6X4/EZ90 Power Rectifier
1x ECL82/6BM8 Power Regulation

Variant 3
2 x EF83 (phono stage)
1 x 6189W (phono stage)
2 x ECL84 (line stage)
1 x 6X4 Power Rectifier
1 x ECL82 Power Regulation

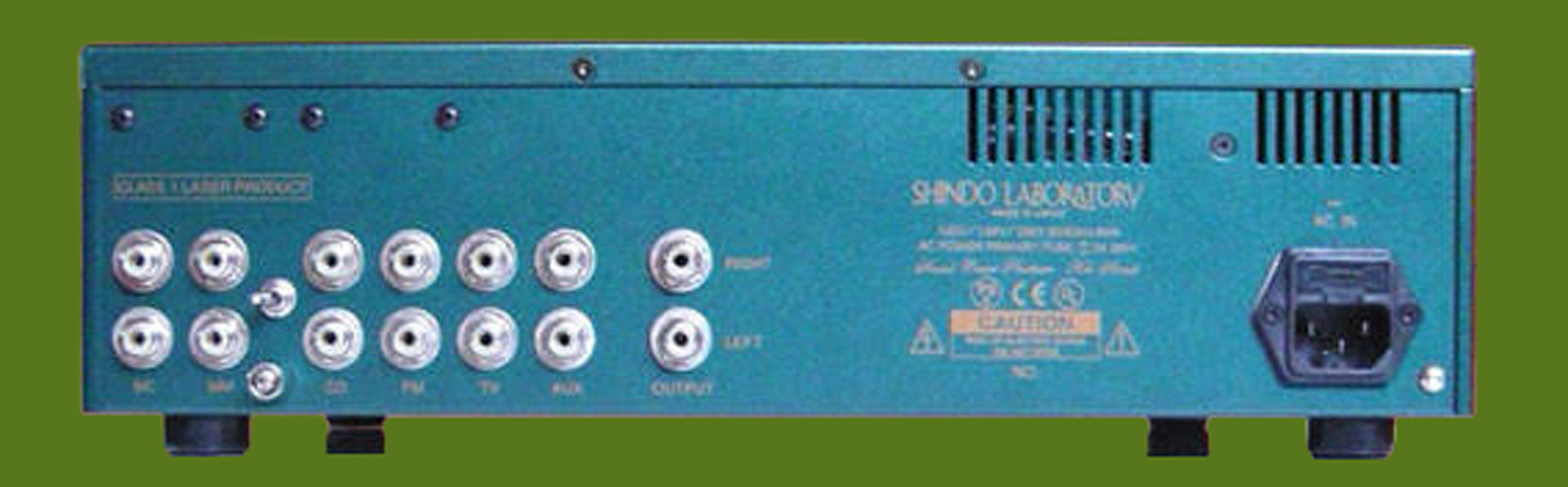

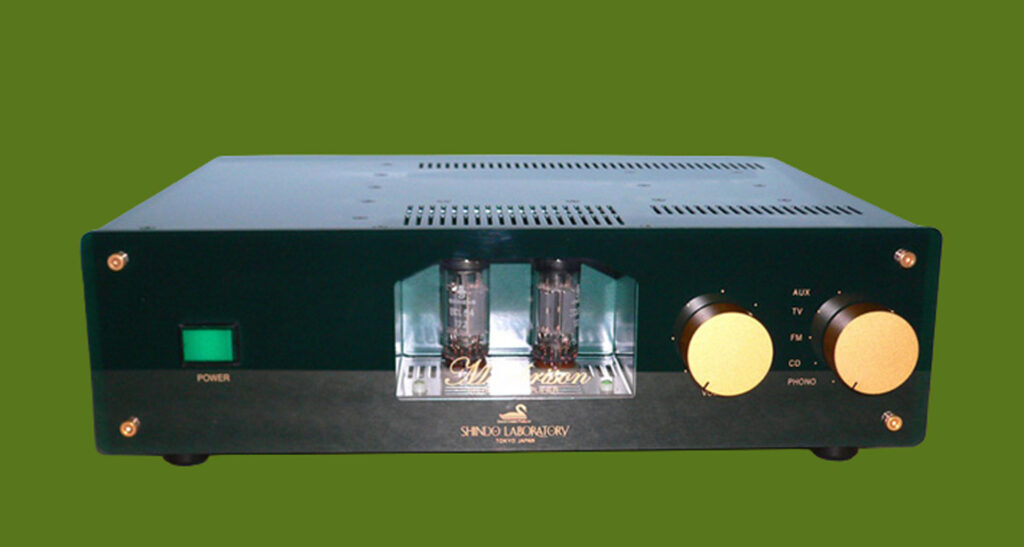

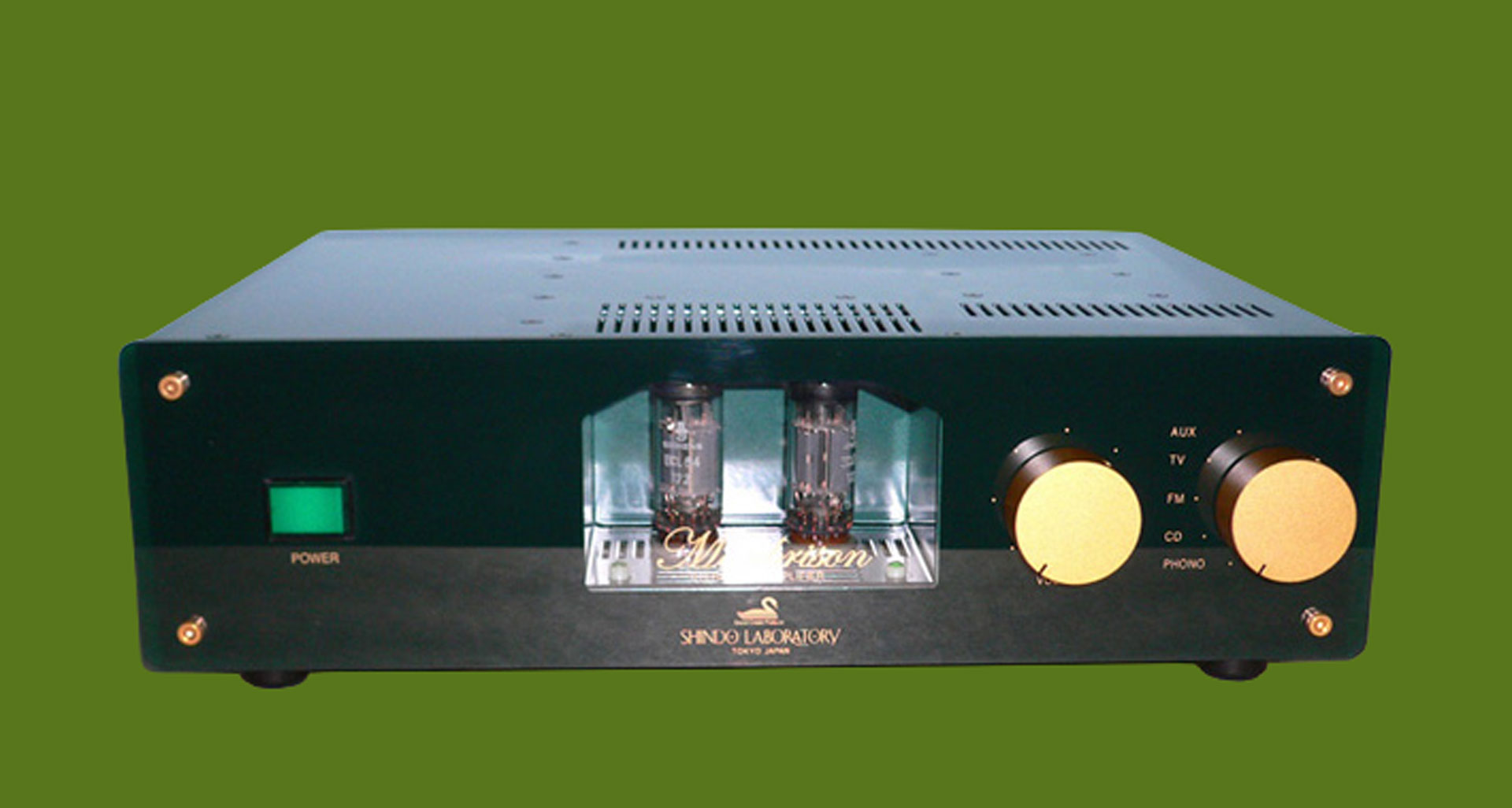

In 2006 the Shindo website product page was redone to reflect a new chassis design. In line with changes made in other product lines at the time ( Petrus, Haut Brion) a tube window is added and the height of the chassis is increased slightly. Additionally the step-up transformer for the MC phono input appears to have been changed.

The line stage tubes appear to still be 2 x ECL84 initially. There are reports that the 6X4 rectifier and ECL82 regulator are replaced with only 2 x 6X4 rectifiers around this time.

Description:

None available

Specifications, Shindo Laboratory website, 2006:

• Input Sensitivity/Impedance:
Phono MC (pin jack): 0.2mV / 2 - 100 Ω.
Phono MM (pin jack) 3mV / 100kΩ
Input selectable
• Other inputs: AUX, FM, TV, CD (input terminal pin jack).
• Signal-to-noise ratio: 119dB, line section non-NFB.
• Frequency response: 20Hz - 20KHz
• Output level/impedance: 10V/5kΩ (pin jack).
• Power consumption: 100V-80W
• Power supply: AC 100V, 50/60Hz
• Dimensions: W 350 x H 110 x D 310 mm (per unit)
• Weight: 7.5kg.

Additional Details:

The full tube complement is unknown

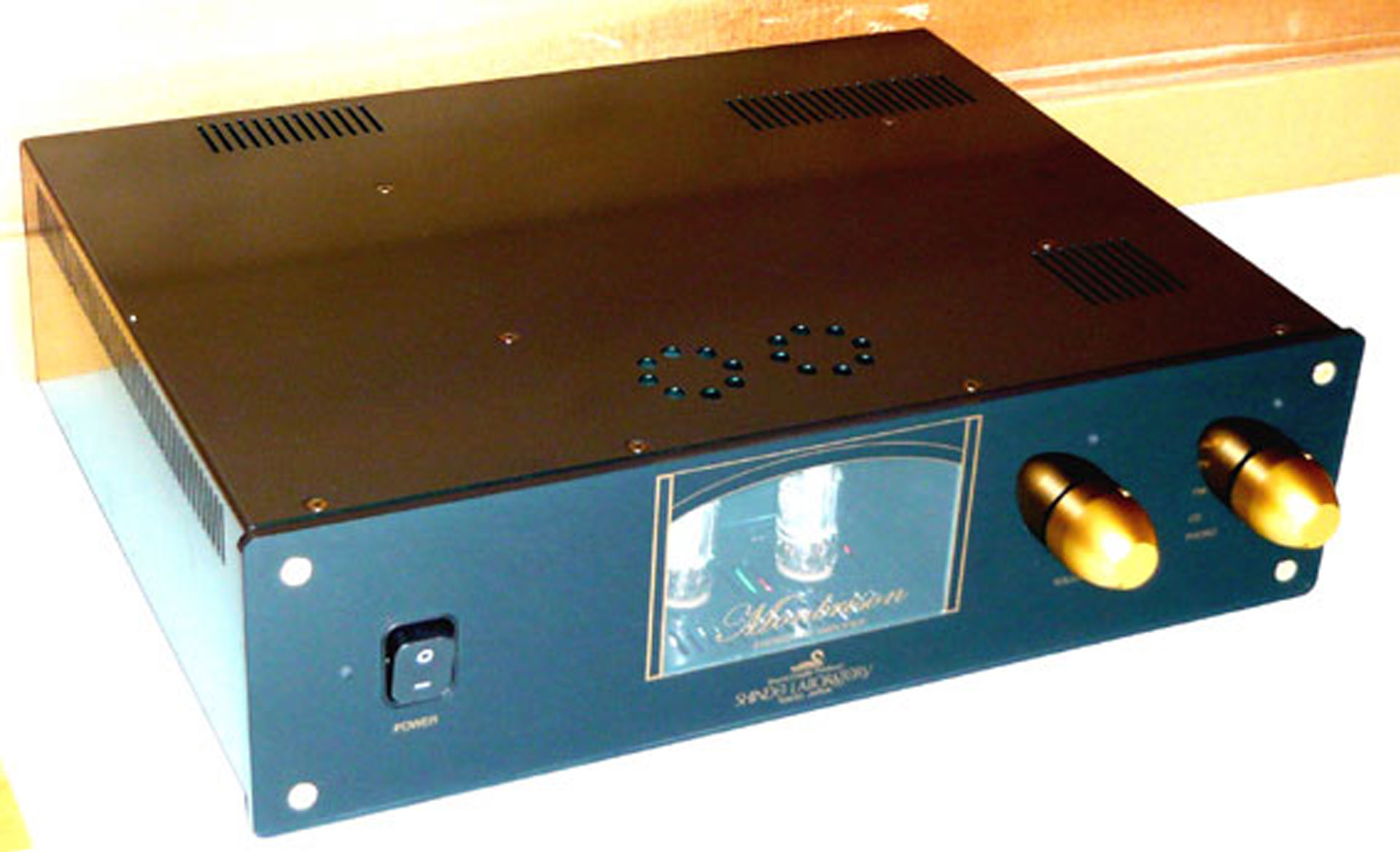

Sometime between August, 2007 and October 2009 Shindo updated the front panel to include the gold proscenium graphics to the tube window. The Shindo Laboratory website image was updated but the technical description was not changed.

The line stage tubes are reported as changing from 2 x ECL84 to 2 x 'Telefunken ECL-94S'. The 'ECL-94S' label was an overprint on ECL84 tubes.

Description:

None available

Specifications, Shindo Laboratory website, 2009:

• Input Sensitivity/Impedance:
Phono MC (pin jack): 0.2mV / 2 - 100 Ω.
Phono MM (pin jack) 3mV / 100kΩ
Input selectable
• Other inputs: AUX, FM, TV, CD (input terminal pin jack).
• Signal-to-noise ratio: 119dB, line section non-NFB.
• Frequency response: 20Hz - 20KHz
• Output level/impedance: 10V/5kΩ (pin jack).
• Power consumption: 100V-80W
• Power supply: AC 100V, 50/60Hz
• Dimensions: W 350 x H 110 x D 310 mm (per unit)
• Weight: 7.5kg.

Additional Details:

Tube complement on units from this time period are reported as
2 x 12AT7 (phono stage)
2 x 12AU7 (phono stage)
2 x ECL84 (ECL-94S ) (line stage)

2 x 6X4 Power Rectifier

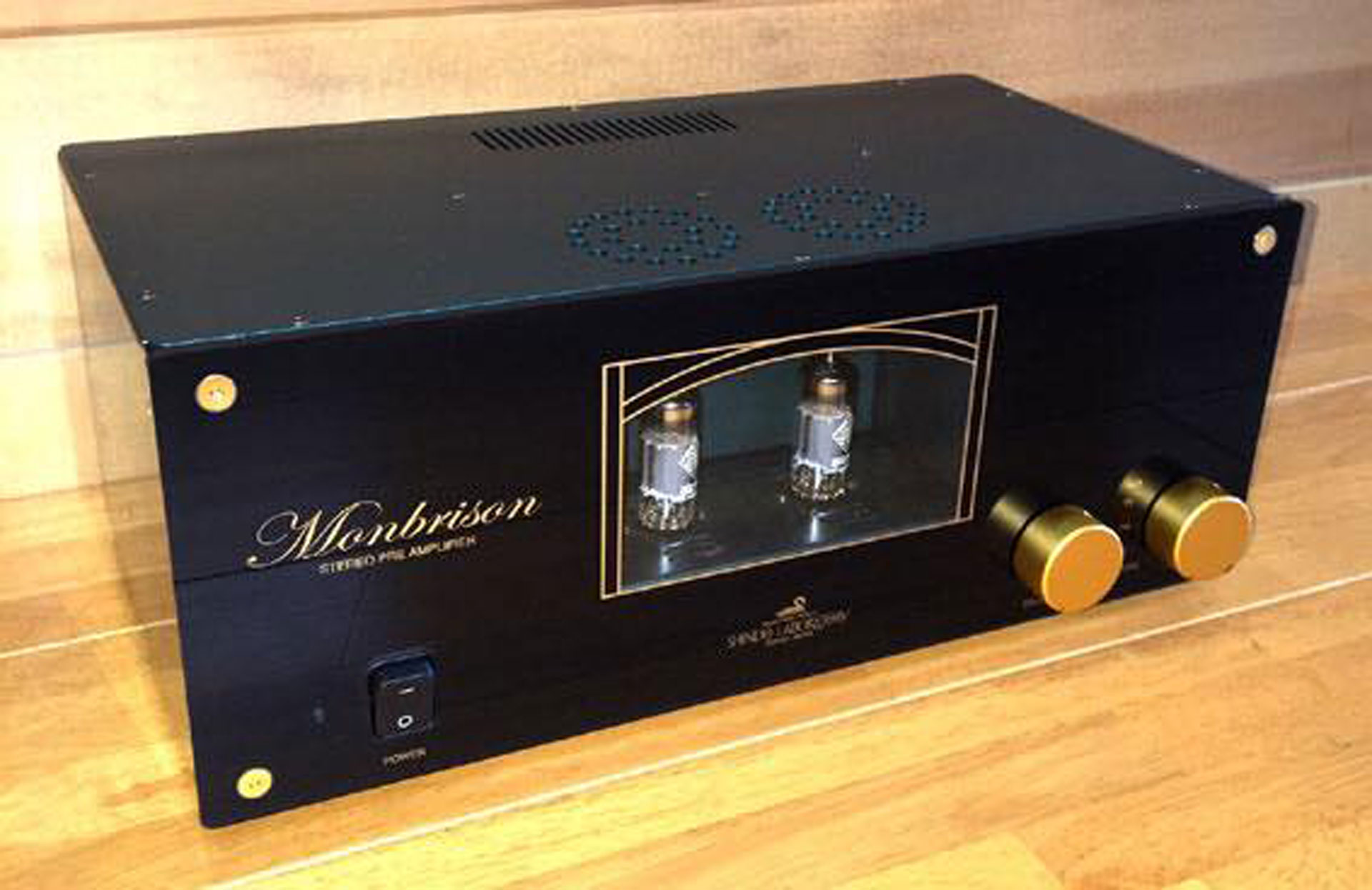

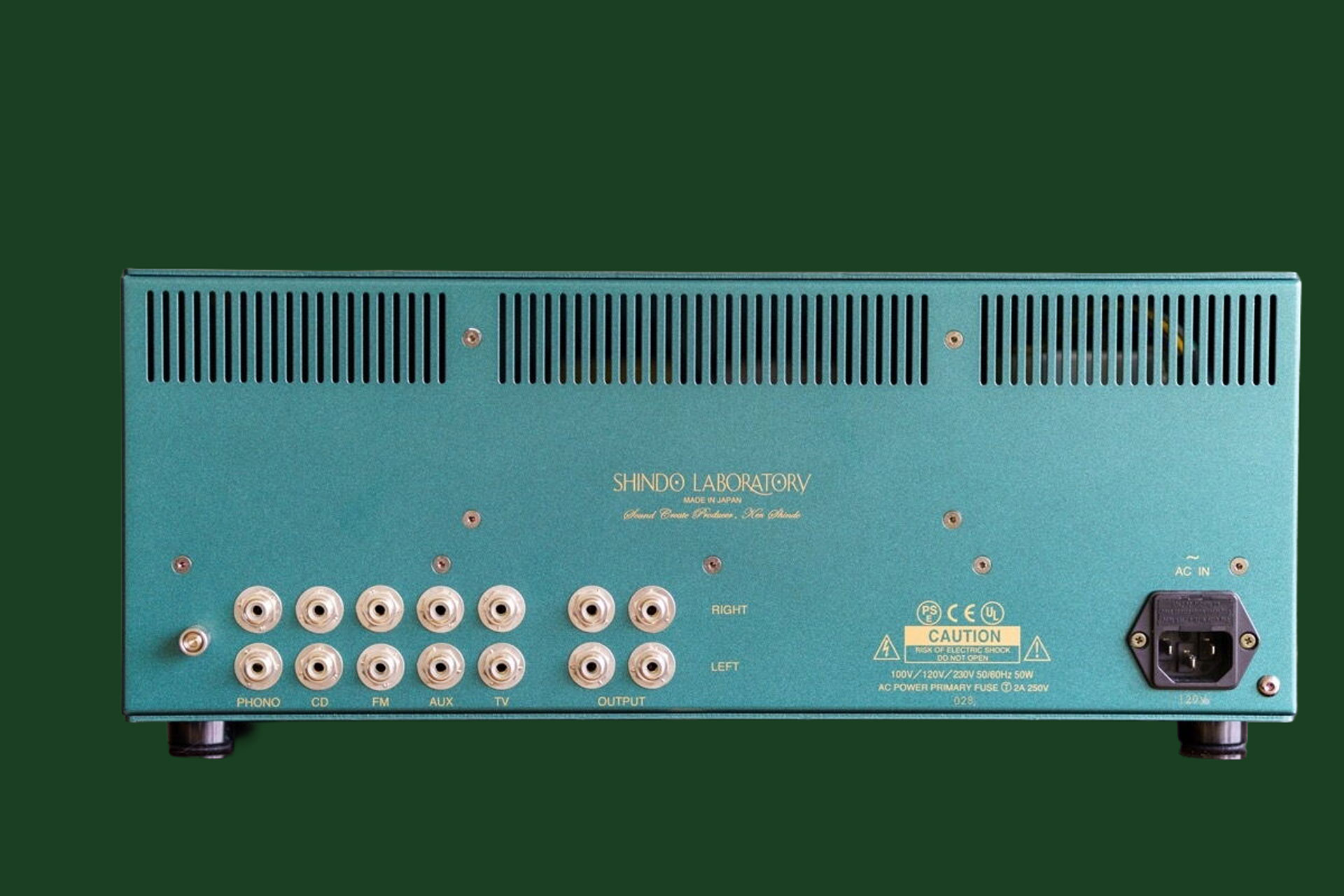

In 2017 a new Monbrison design was announced. The MC phono input was removed but a custom output transformer is added, reversing the removal in 2002. The output impedance was lowered from 5 kOhm to 1 kOhm.

Dealer and reviewer comments indicate the 2017 Monbrison was meant to fit between the 'old' Monbrison and the discontinued Masseto.

Description:

None available

Specifications, Shindo Laboratory website, 2017:

• Input Sensitivity / Impedance:
Phono Input MM (RCA Pin Jack) Input Sensitivity: 3mV / 100kΩ
• Other Inputs: CD, FM, TV, AUX Inputs (RCA Pin Jack)
• PHONO Max. Input Voltage: 1,200mV
• S/N Ratio: 120dB
• Frequency Response: 20Hz - 20kHz
• Output Level / Impedance: 5V / 1kΩ x 2 (RCA Pin Jack)
• Power Consumption: 50W
• Power Supply: AC 100V, 50/60Hz
• External Dimensions: W395 x H165 x D240 mm
• Weight: 8kg

Additional Details:

The phono stage tubes are reported as reverting back to the 1999 specifications of three tubes. The Line stage Telefunken ECL84/ECL-94S are replaced with Telefunken ECL96. The two 6X4 rectifiers are reportedly replaced by a single rectifier but with no regulator.

2 x EF86 (phono stage
1 x 12 AU7 (phono stage)
2 x ECL96 (Line Stage)
• Input to signal grid of triode half
• Output of triode plate through a capacitor to pentode half

1 x 6X4 rectifier valve (rectifier)
Chokes for smoothing

Tokyo Cosmos dual potentiometers
Denki mains transformer
