Model 77
All Names:
Model 77
Model 77C
Categories:
Pre Amplifier
Stereo
Production Years:
1985 (est) - 1988 (est)

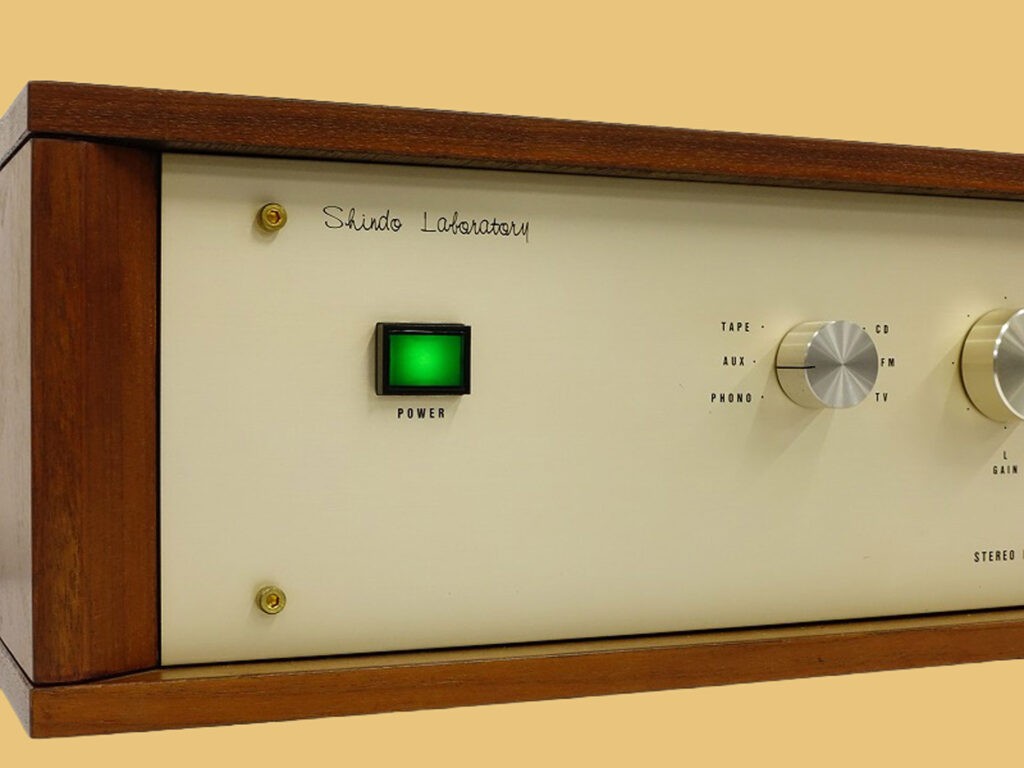

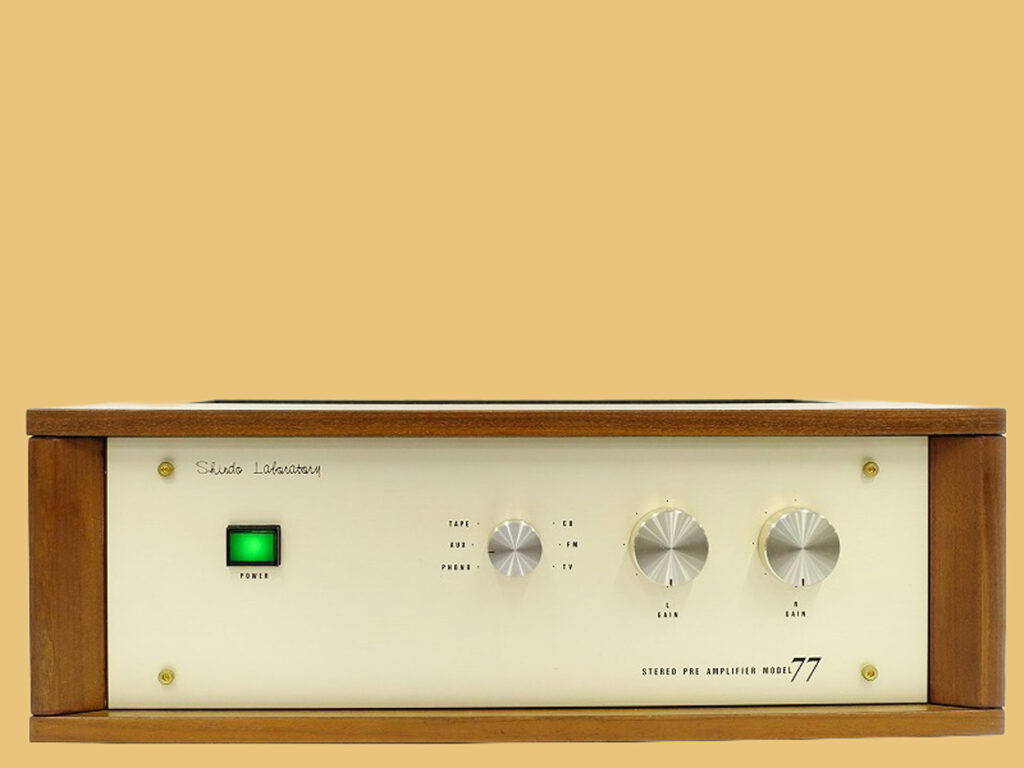

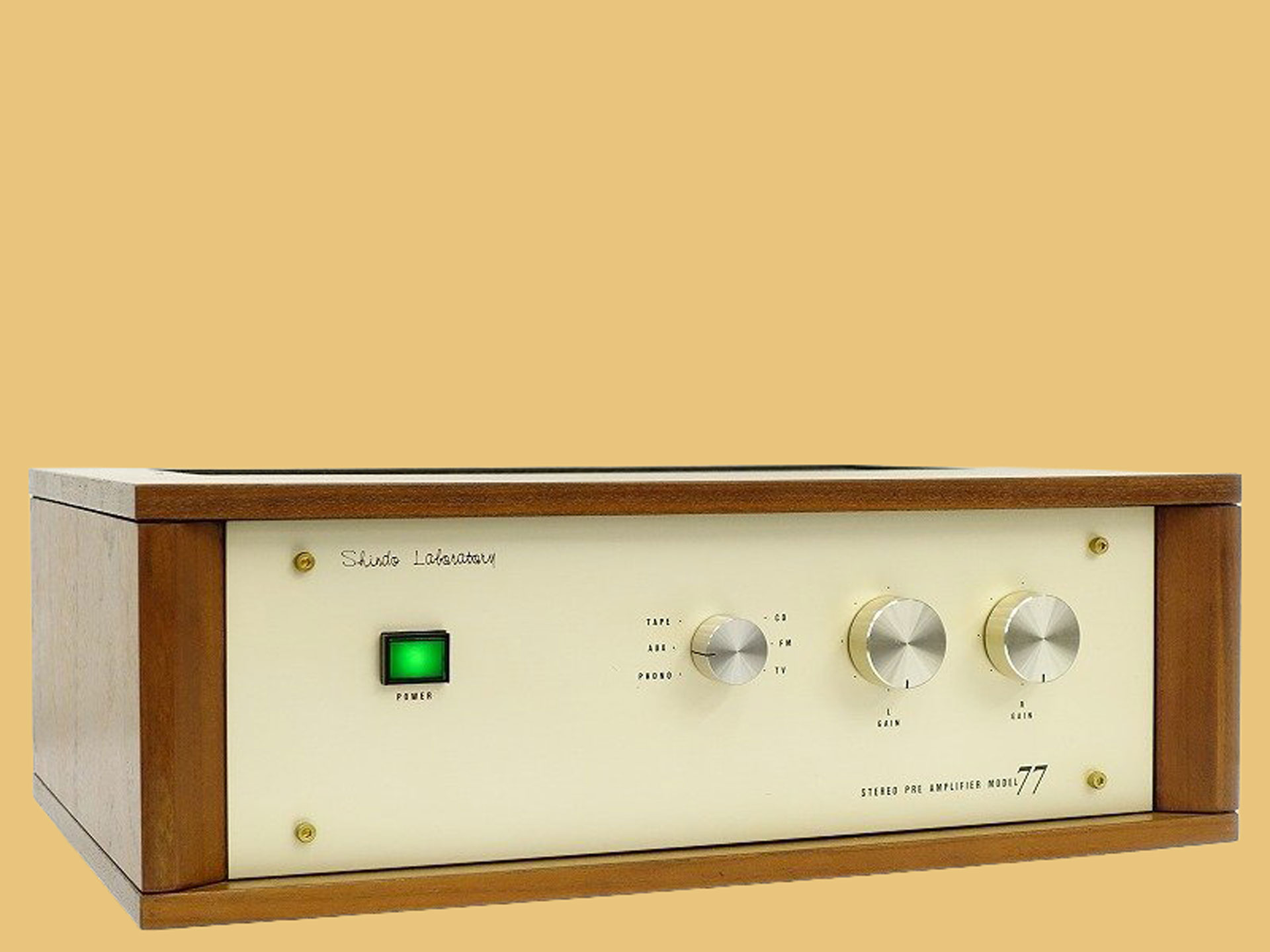

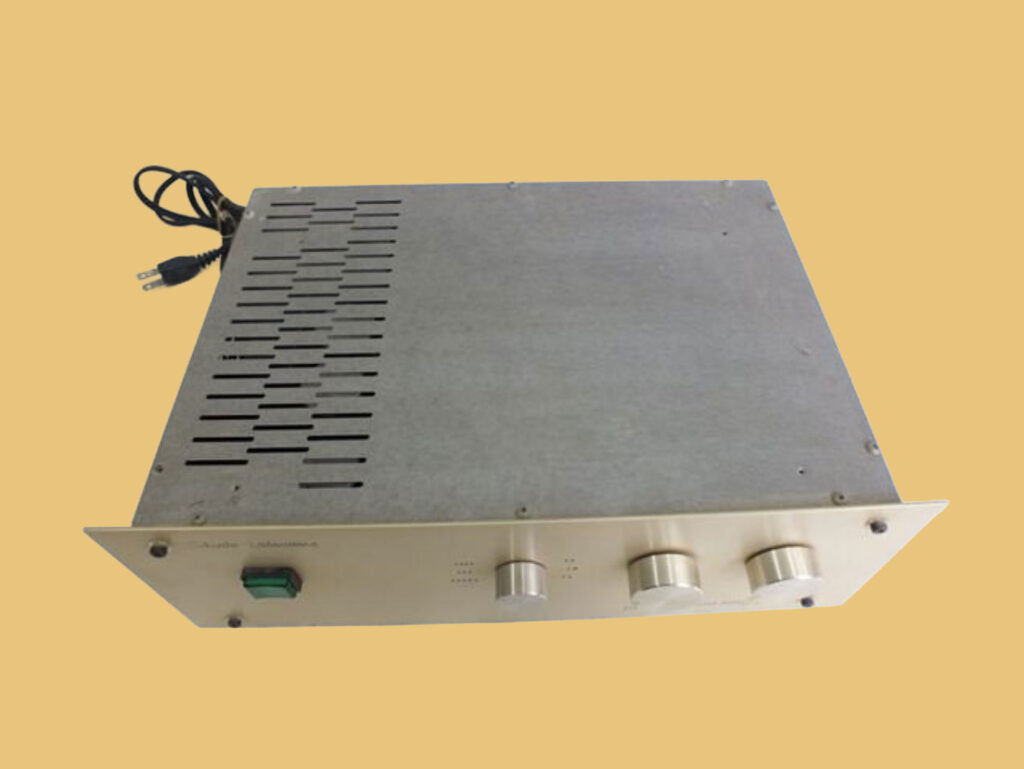

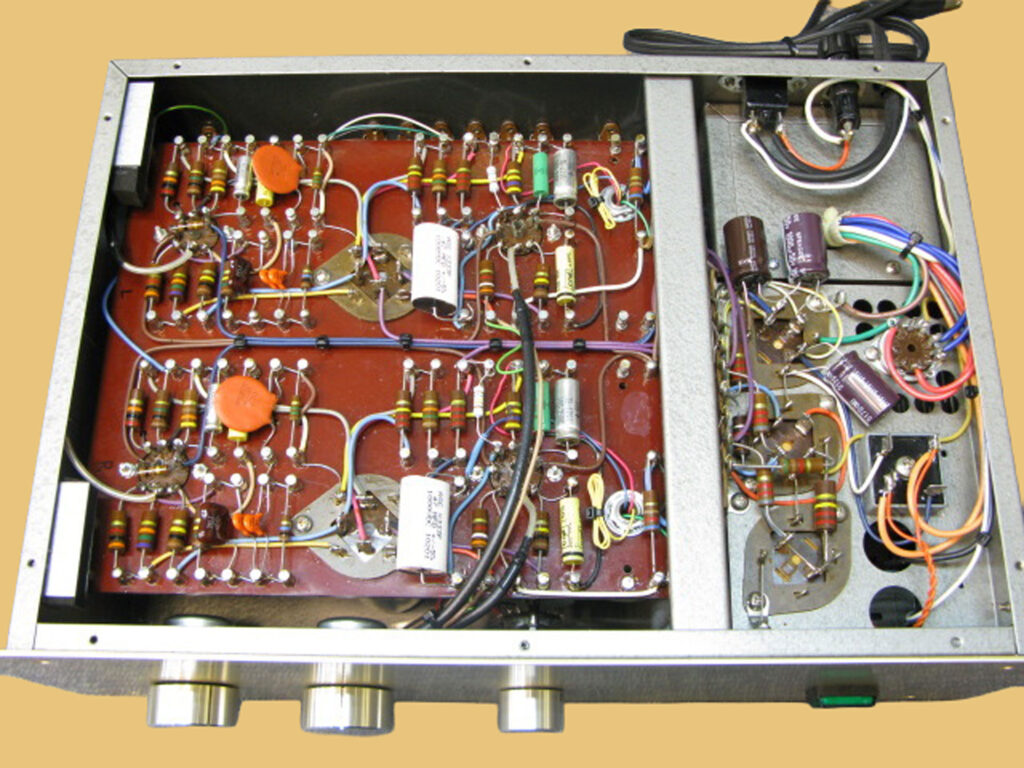

Shindo Model 77 stereo pre amplifier, est 1985
Shindo Model 77 stereo pre amplifier, est 1985
Name:
Model 77
Categories:
Pre Amplifier
Stereo
Years Produced:
1985 (est) - 1986 (est)
MSRP:

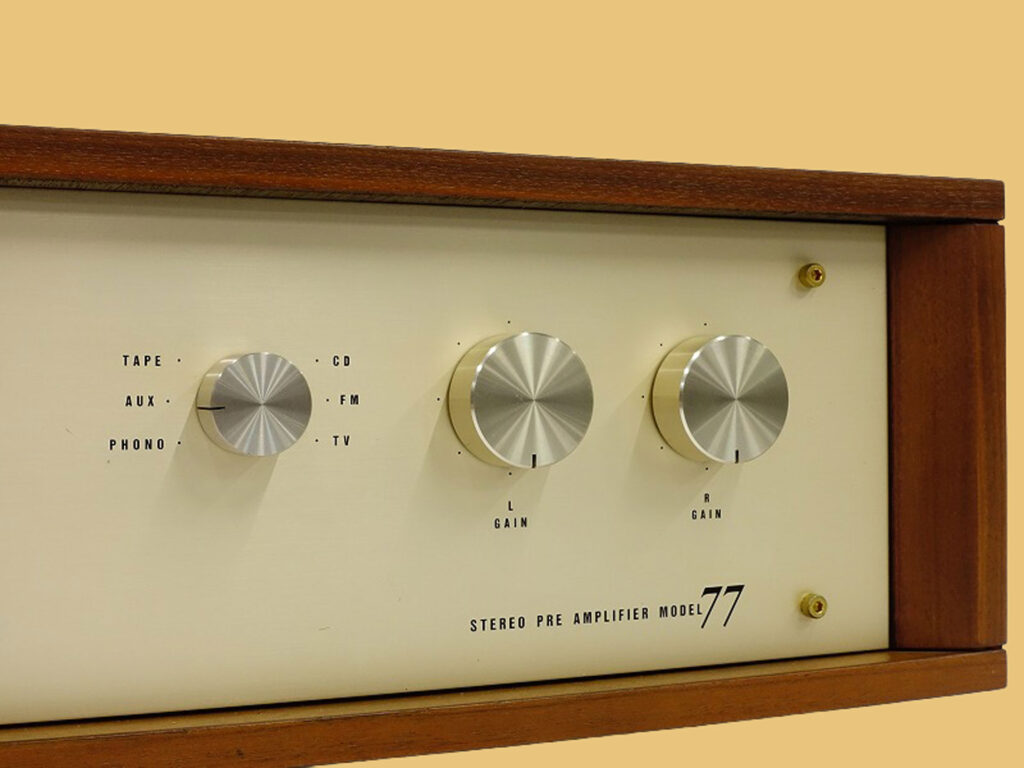

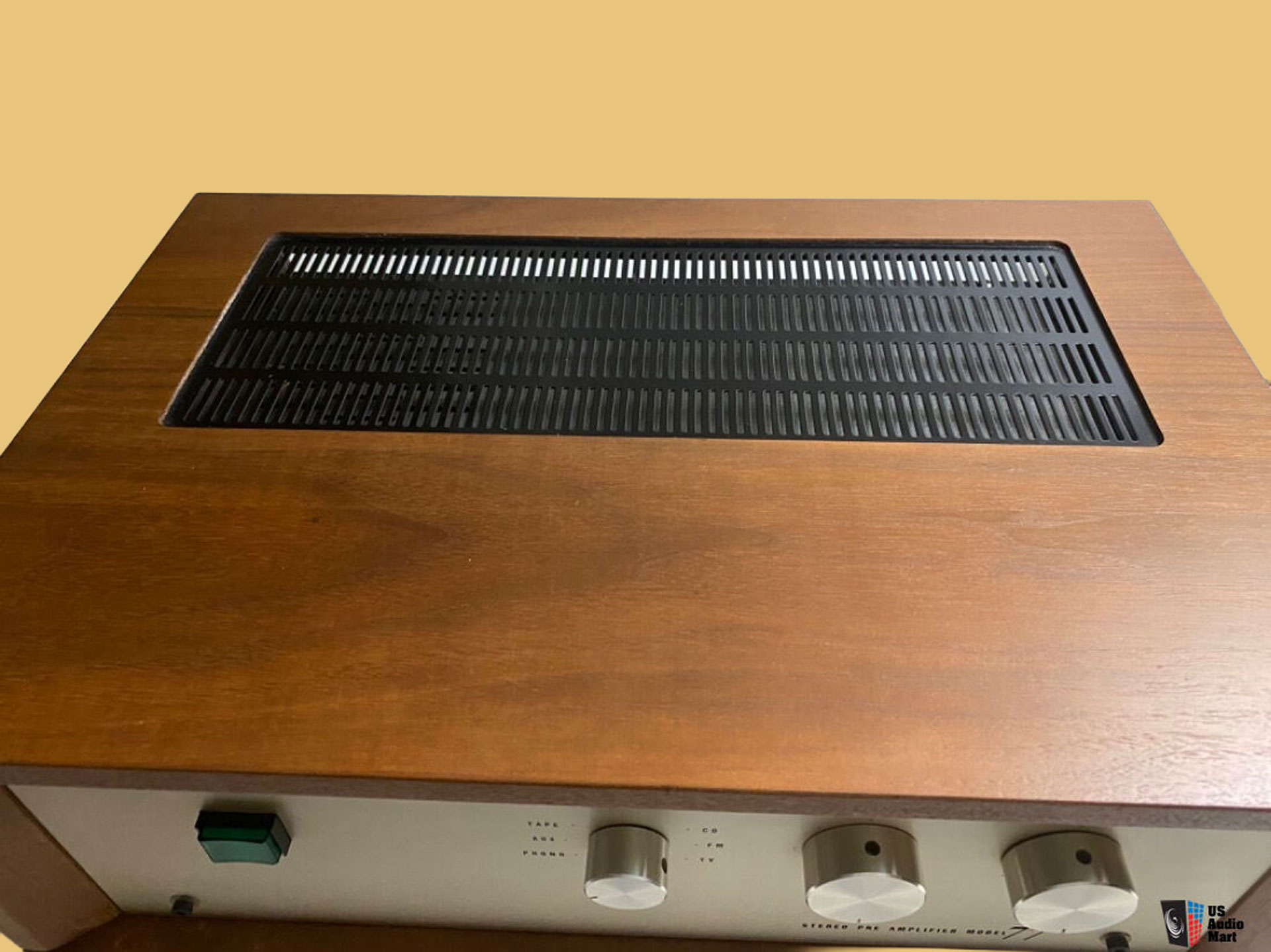

The designation '77C' indicates the unit was sold with a case. The faceplate will still indicate 'Model 77'
Description:
None available
Specifications:
None available
Additional Details:

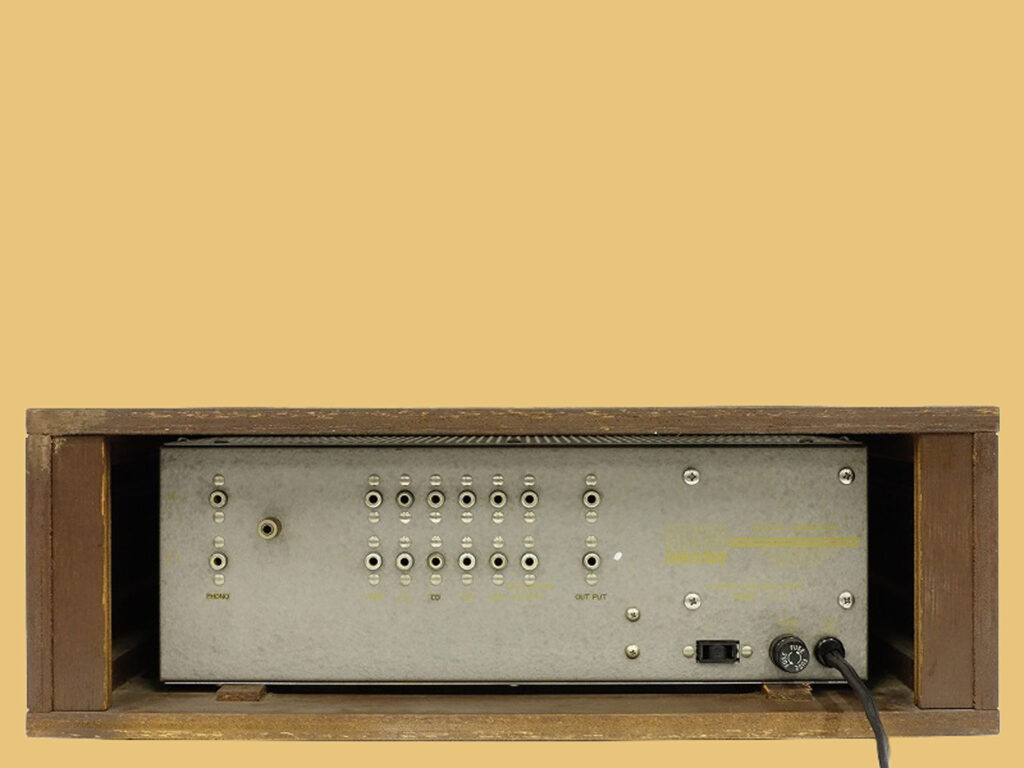

• 1 x Phono Input: moving magnet (RCA pin jack)
• MM gain: 40 dB
• 5 x Other Inputs: AUX, TAPE, CD, FM, TV (RCA pin jack)
• AUX gain: 20dB
• Residual noise 0.01mV (AUX)
• Total harmonic distortion 0.01% (at 1V output)

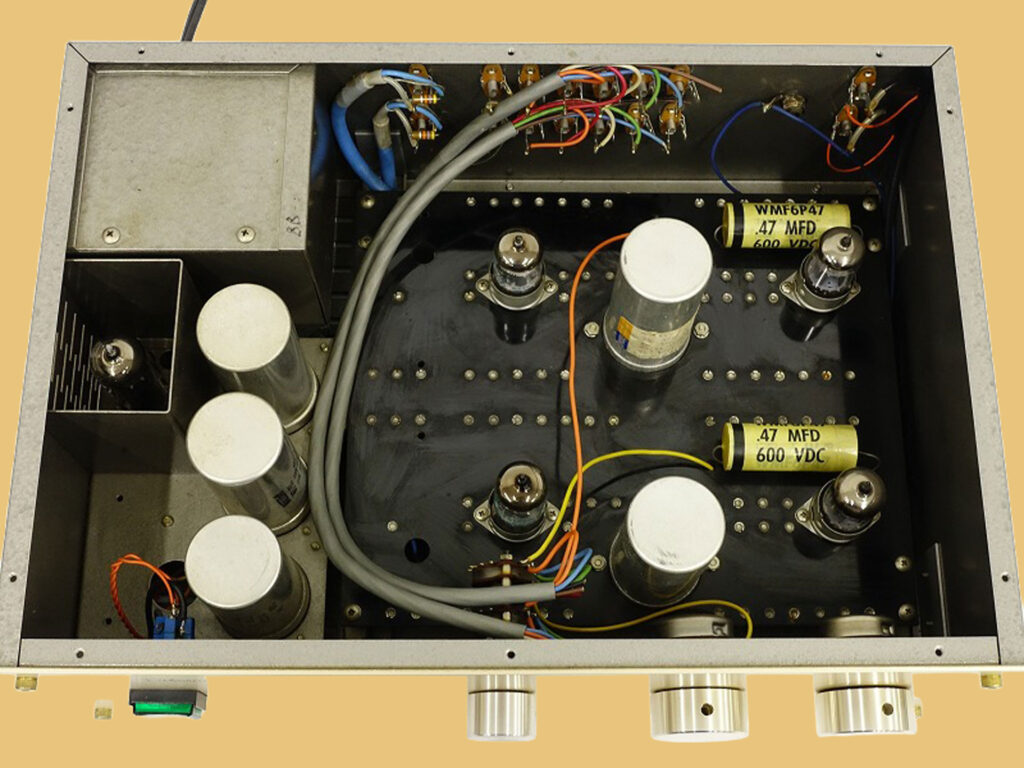

• Triad Utrad A-66 J interstage/matching transformer
• Separate channel gain controllers
• 1 x Output (RCA pin jack)
• Tubes:
1 x EZ81 Rectifier
2 x 12AU7/6189/ECC82
2 x 12AX7/ECC83
• Captive power cable
• Line power pass through
• Dimensions: 380 W x 125 H x 270 D (mm)
• Weight:5.5kg.

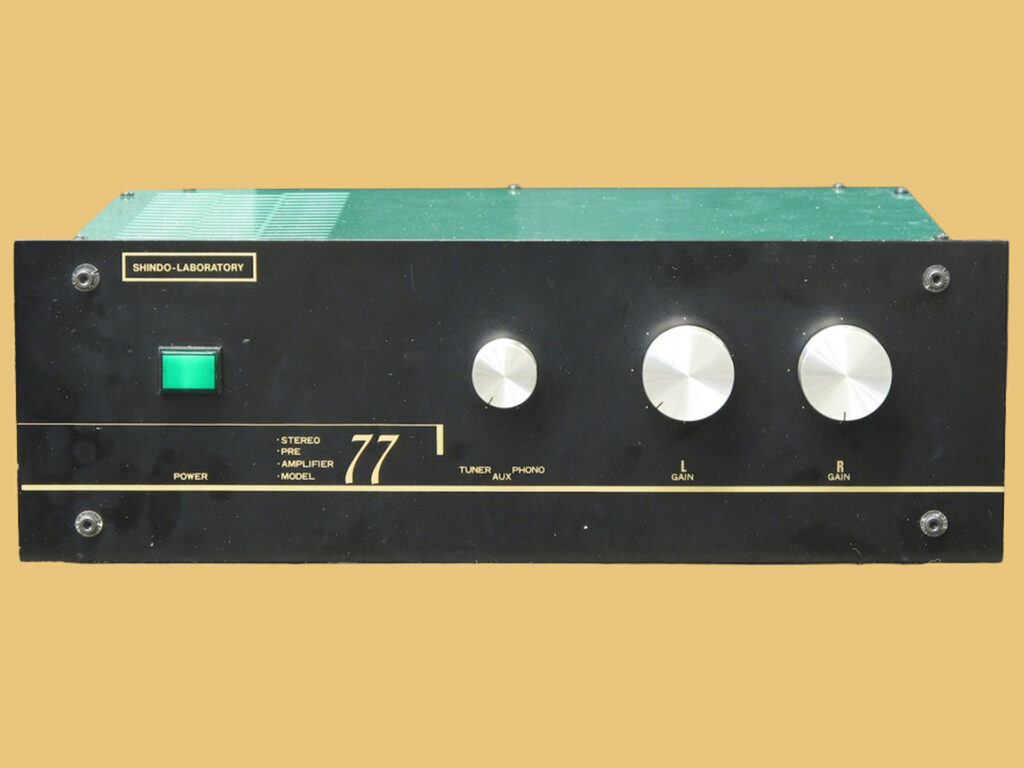

Shindo Model 77 stereo pre amplifier, est 1987
Shindo Model 77 stereo pre amplifier, est 1987
Name:
Model 77
Categories:
Pre Amplifier
Stereo
Years Produced:
1987 (est) - 1988 (est)
MSRP:

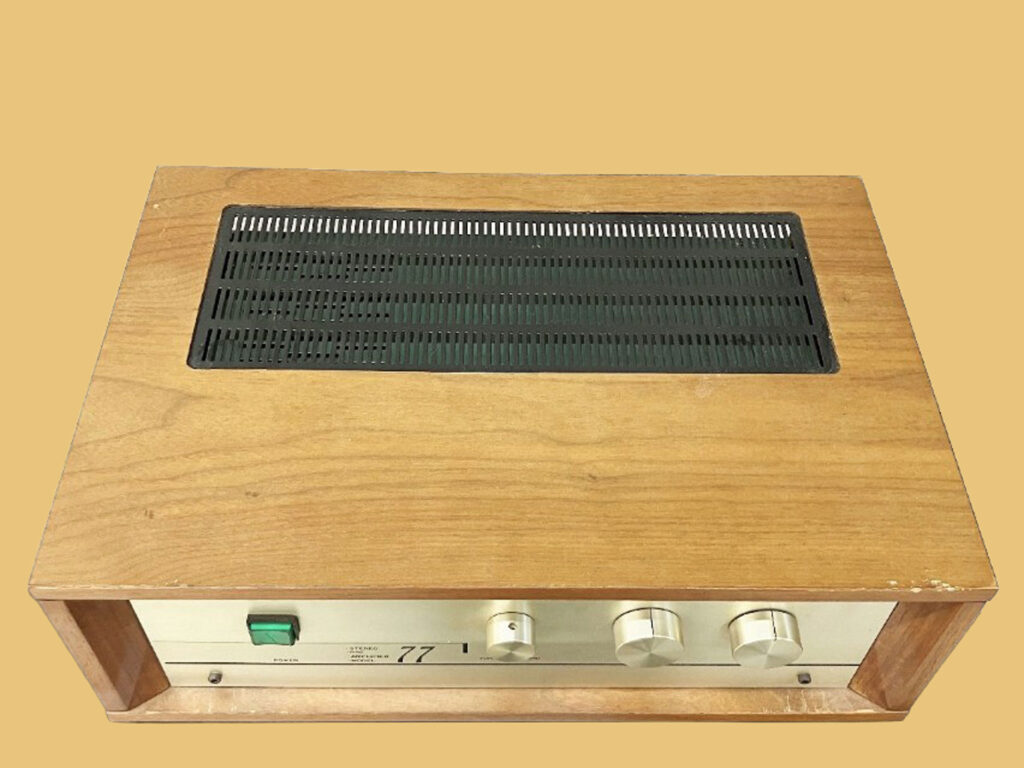

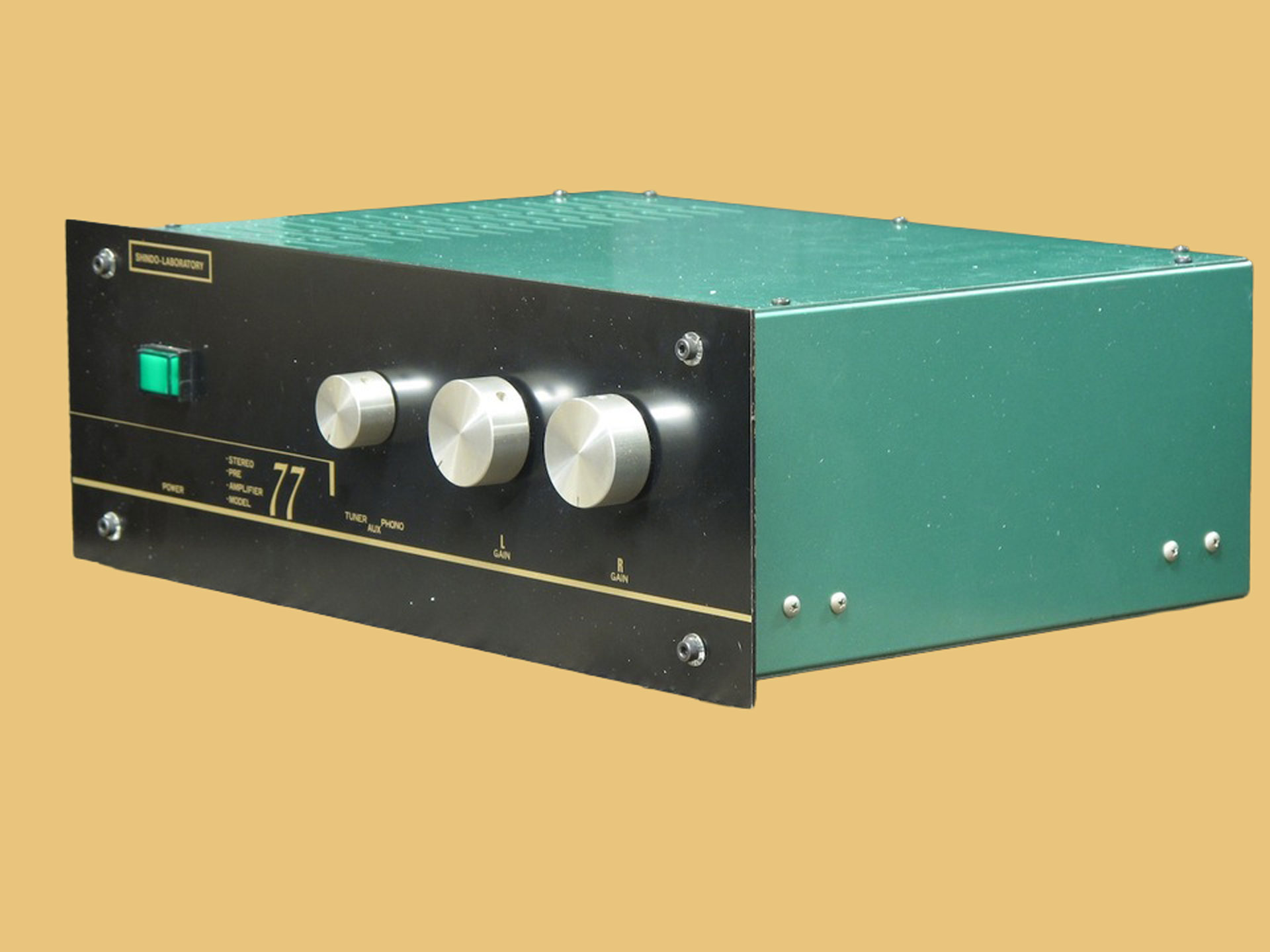

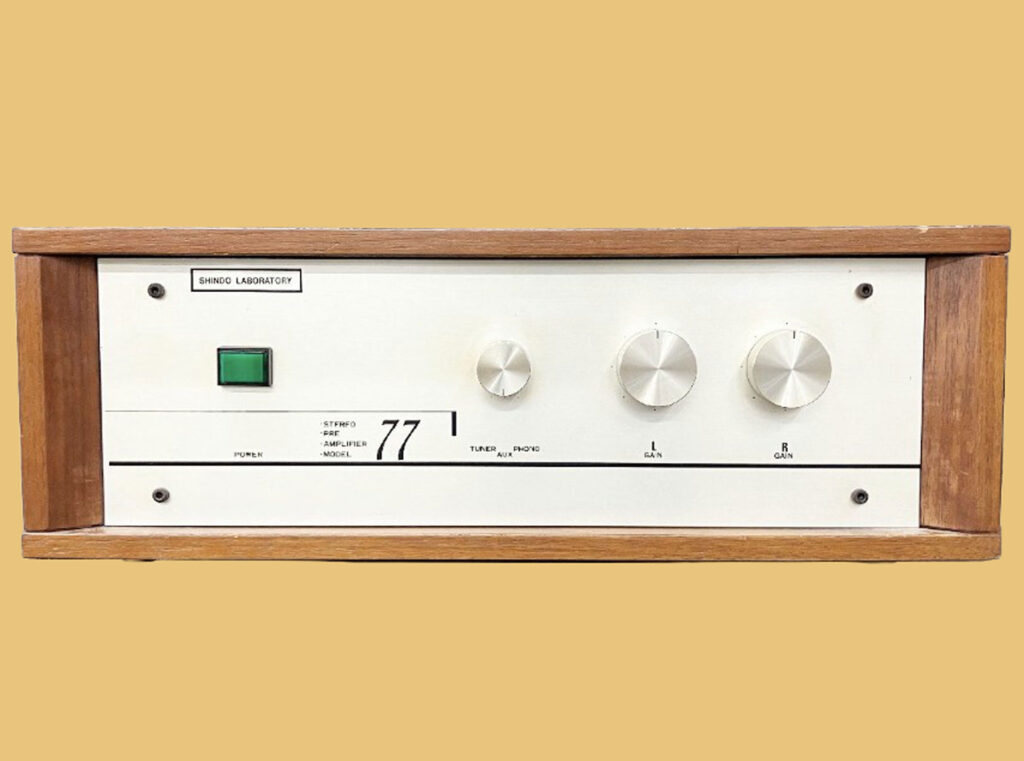

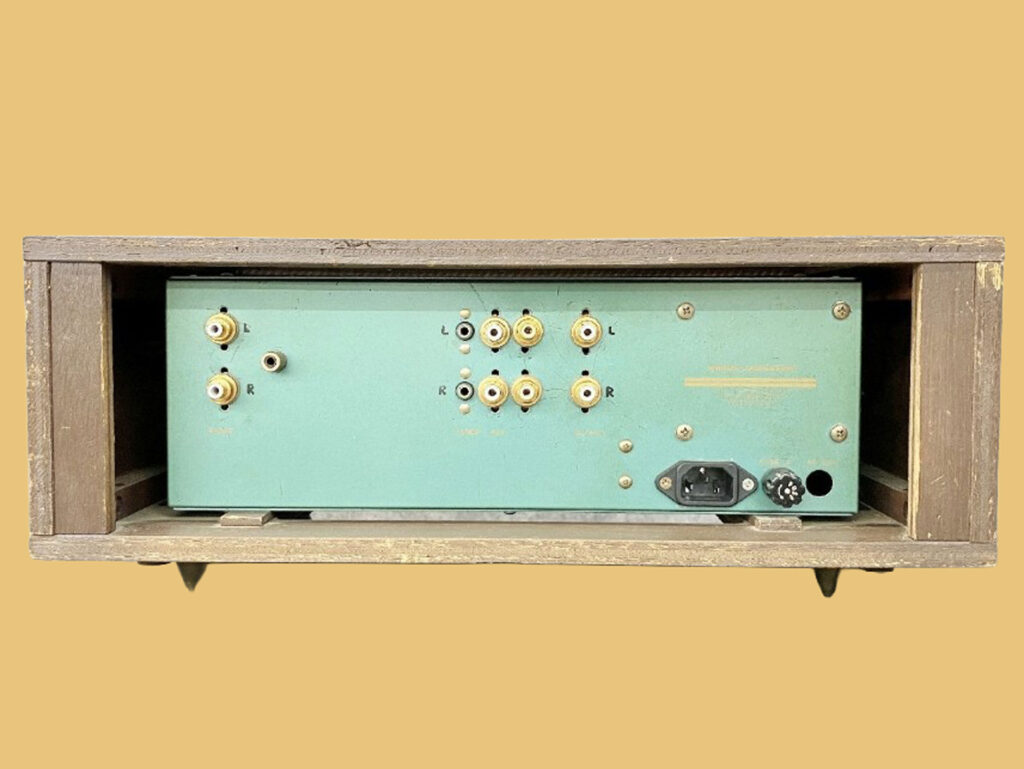

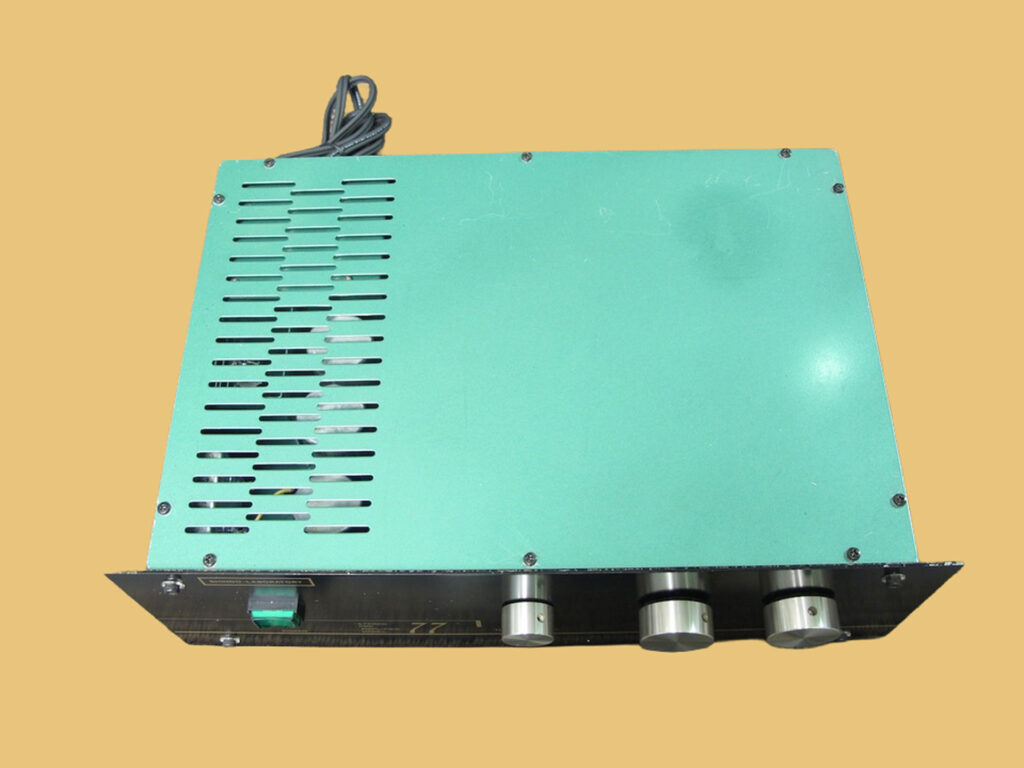

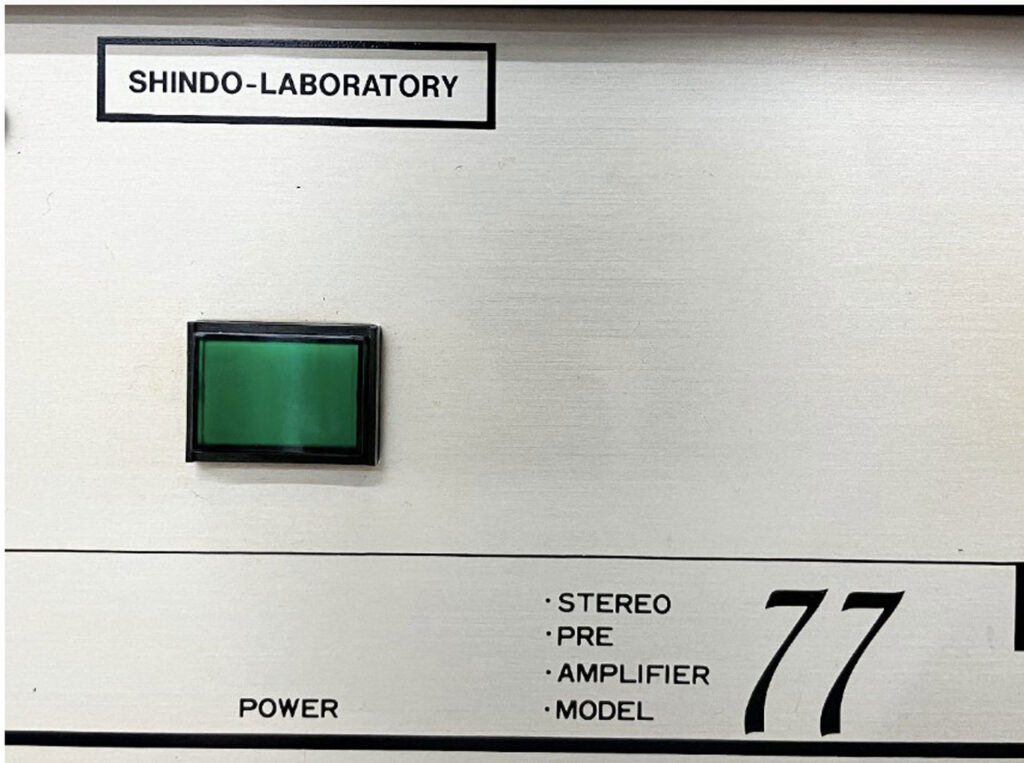

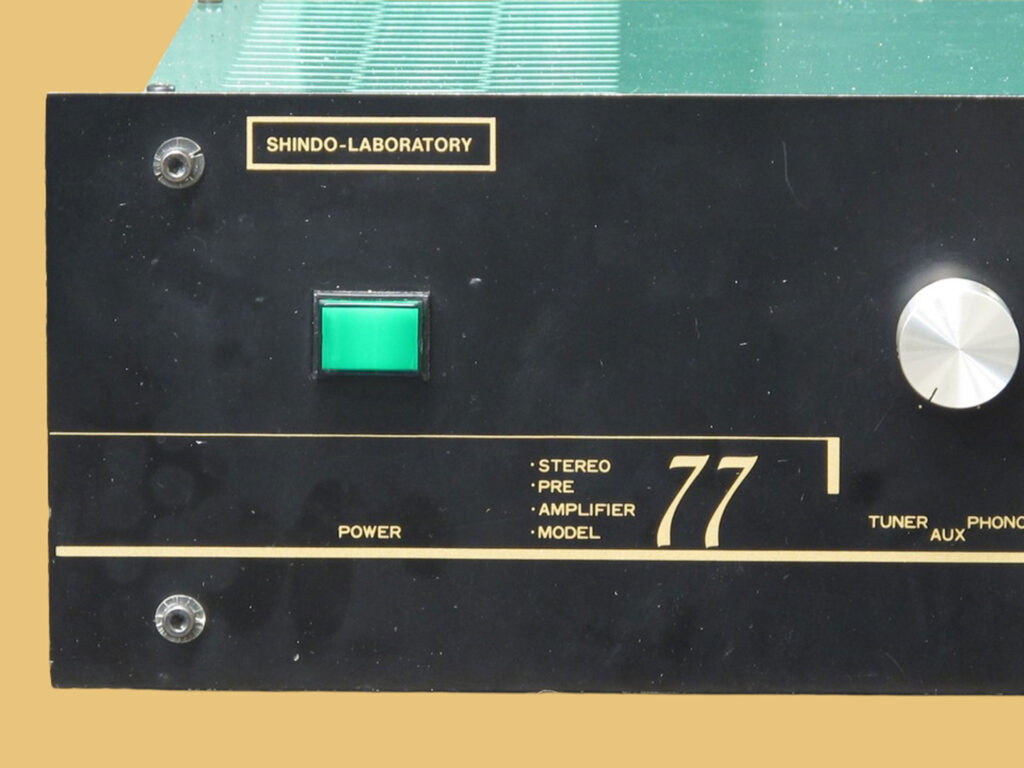

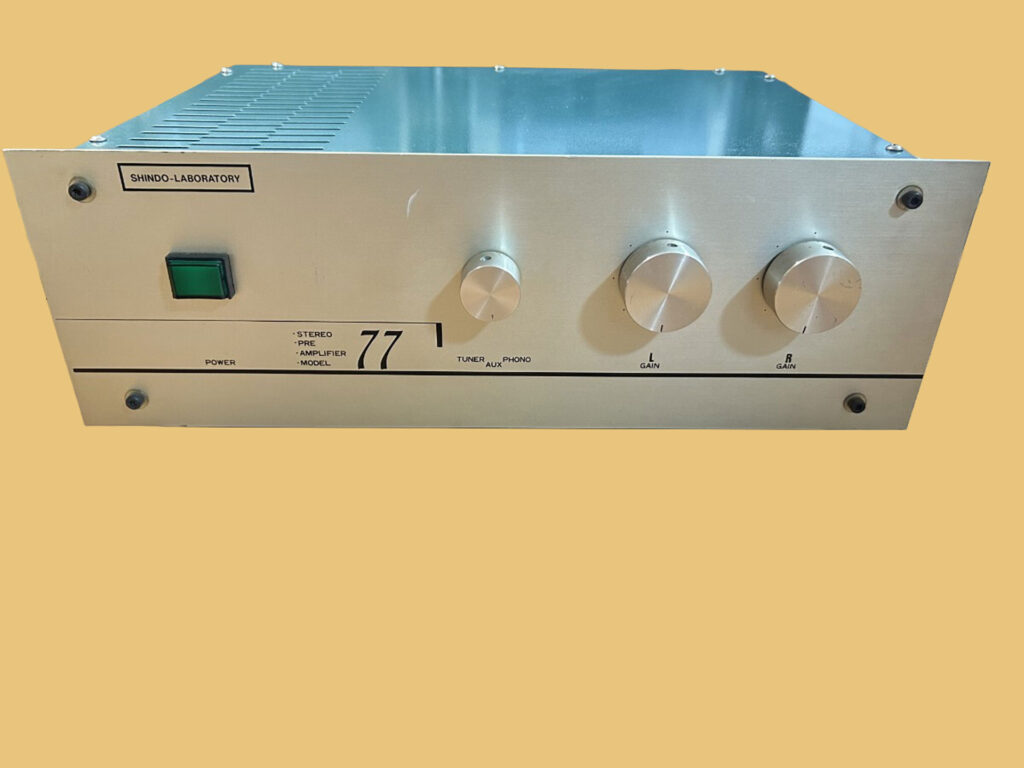

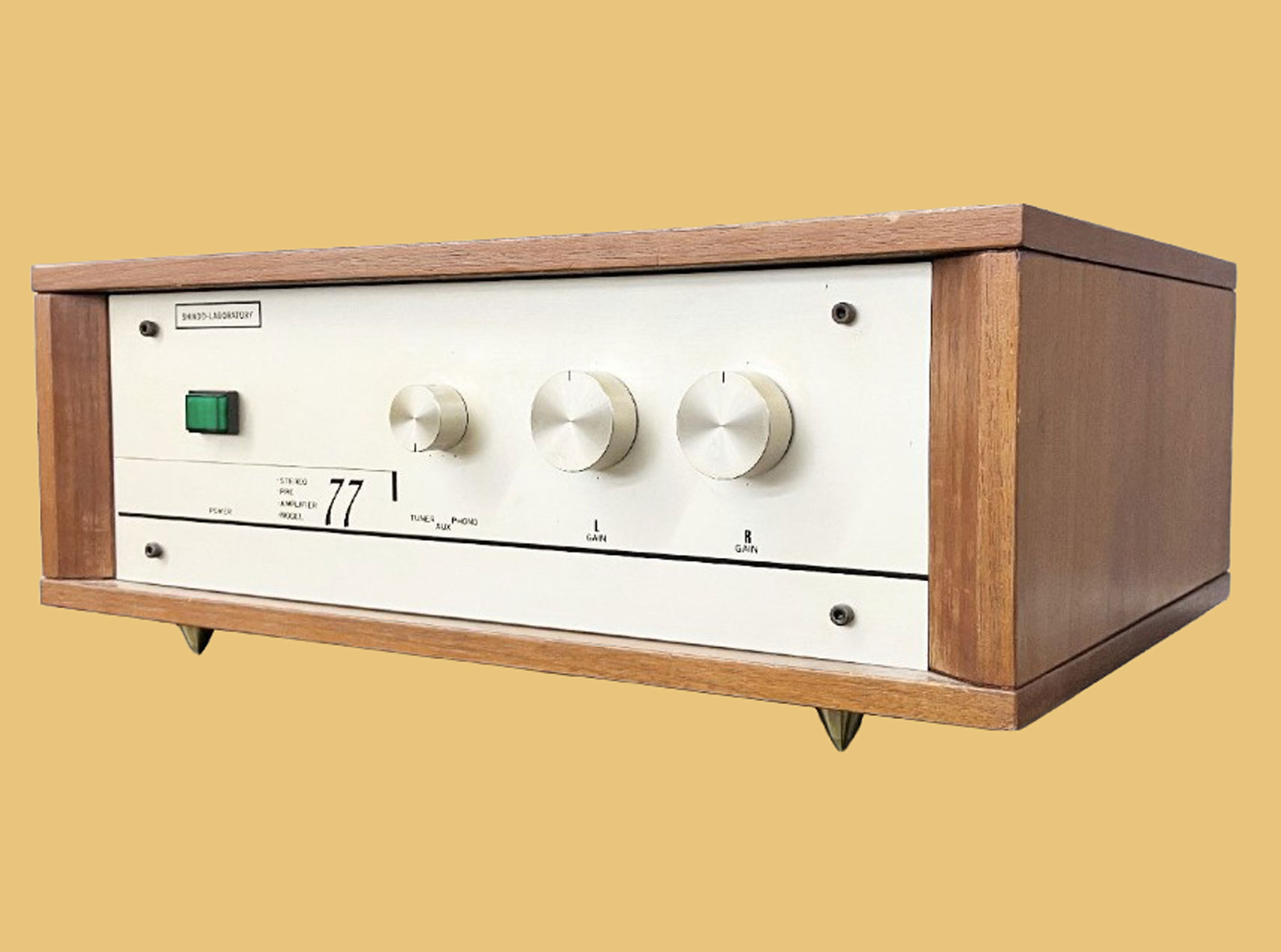

A second version or production run changed the case to green and reduced the number of inputs. Two faceplate variations were available, its unknown if at the same time.

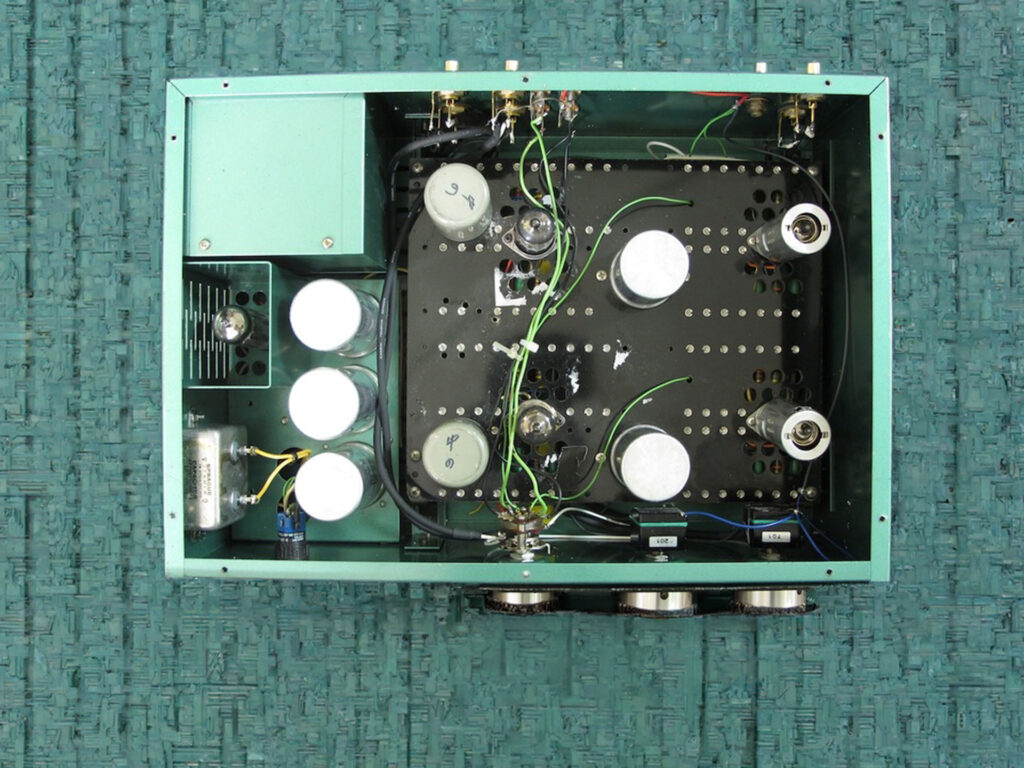

Give the wiring and modifications seen in images its possible these were offered only as kits.
Description:
None available
Specifications:
None available
Additional Details:
Line inputs reduced from 5 to 3 sets.
