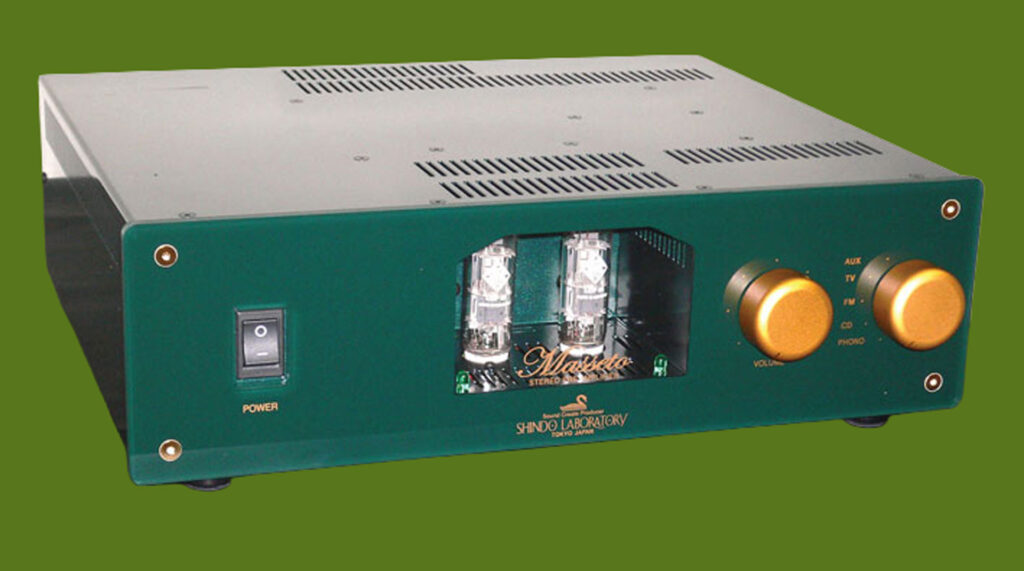

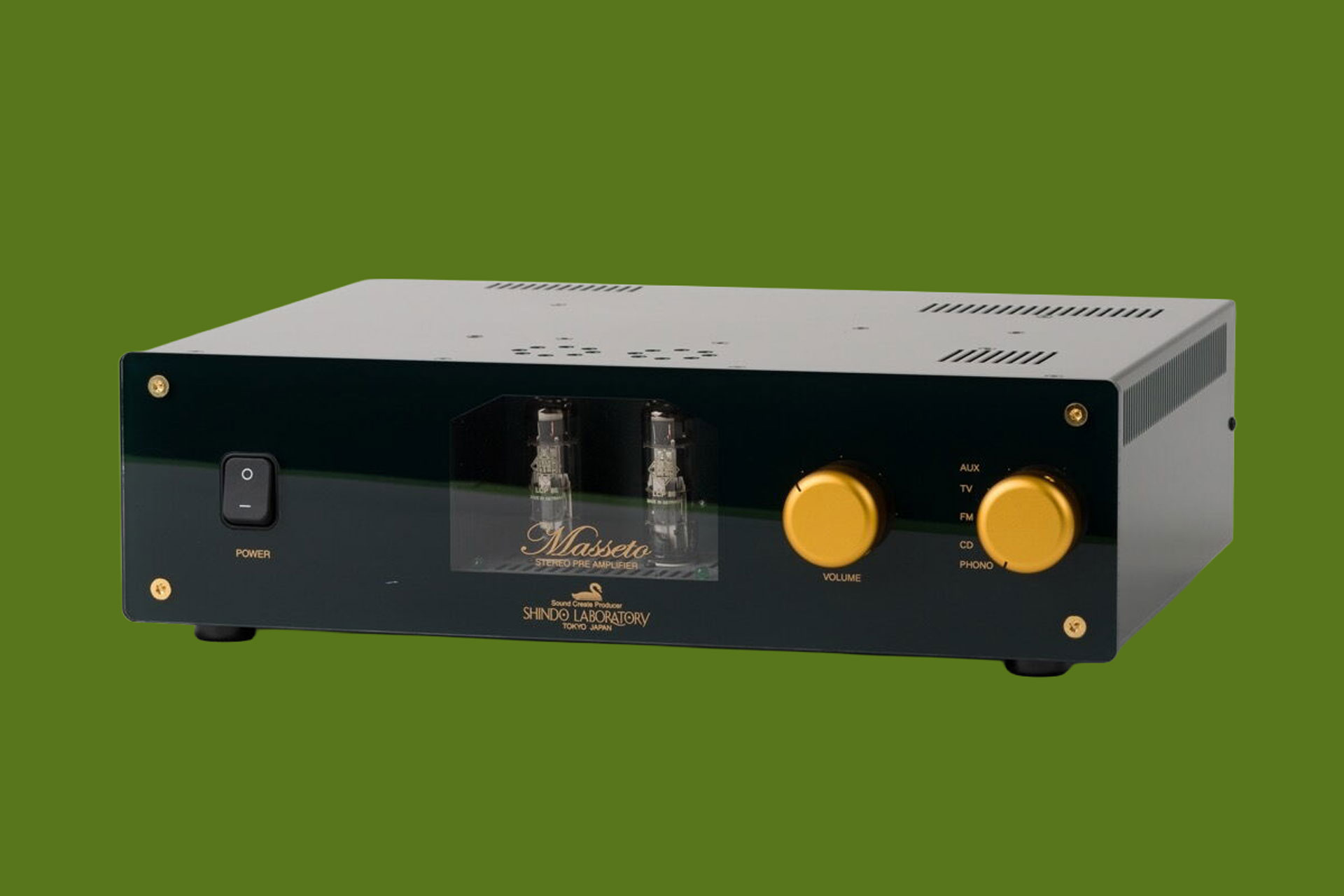

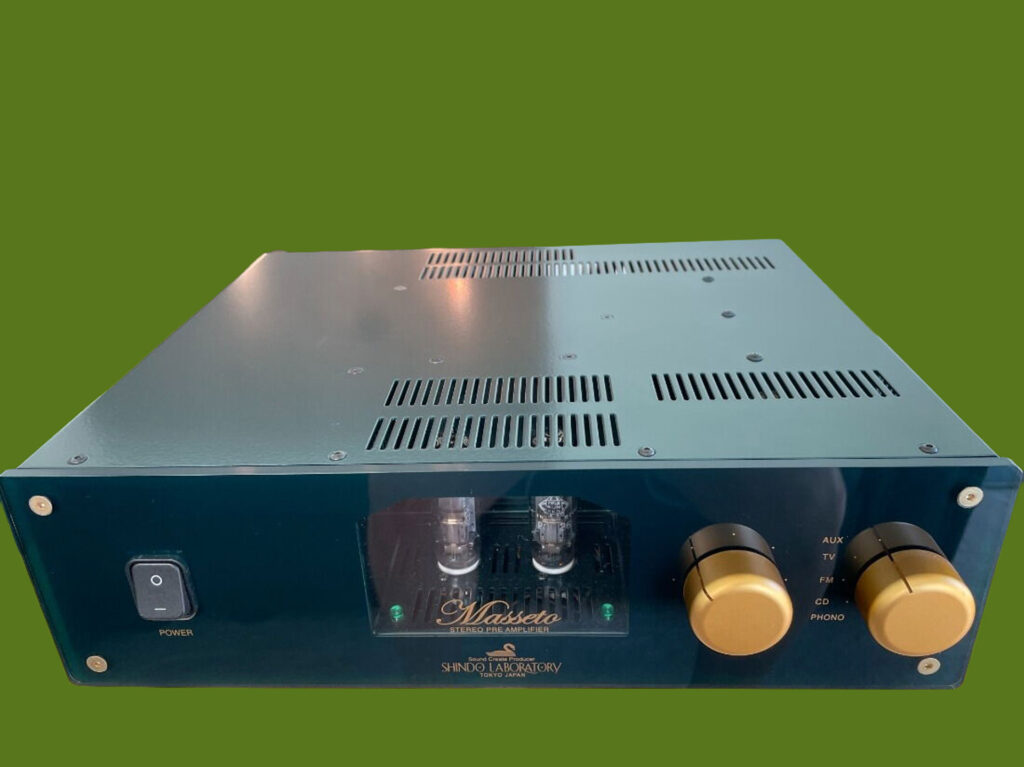

The older Masseto usually have the 'slatted' top and rounded knobs. The faceplate will not have the proscenium artwork , but you may see the newer top with this older faceplate.

Description:

None available

Specifications, Shindo Website 2007:

• Input Sensitivity/Impedance:
Phono MC (pin jack): 0.2mV/2-100Ω
Phono MM (pin jack): 3mV/100KΩ
Phono input selectable via rear switch

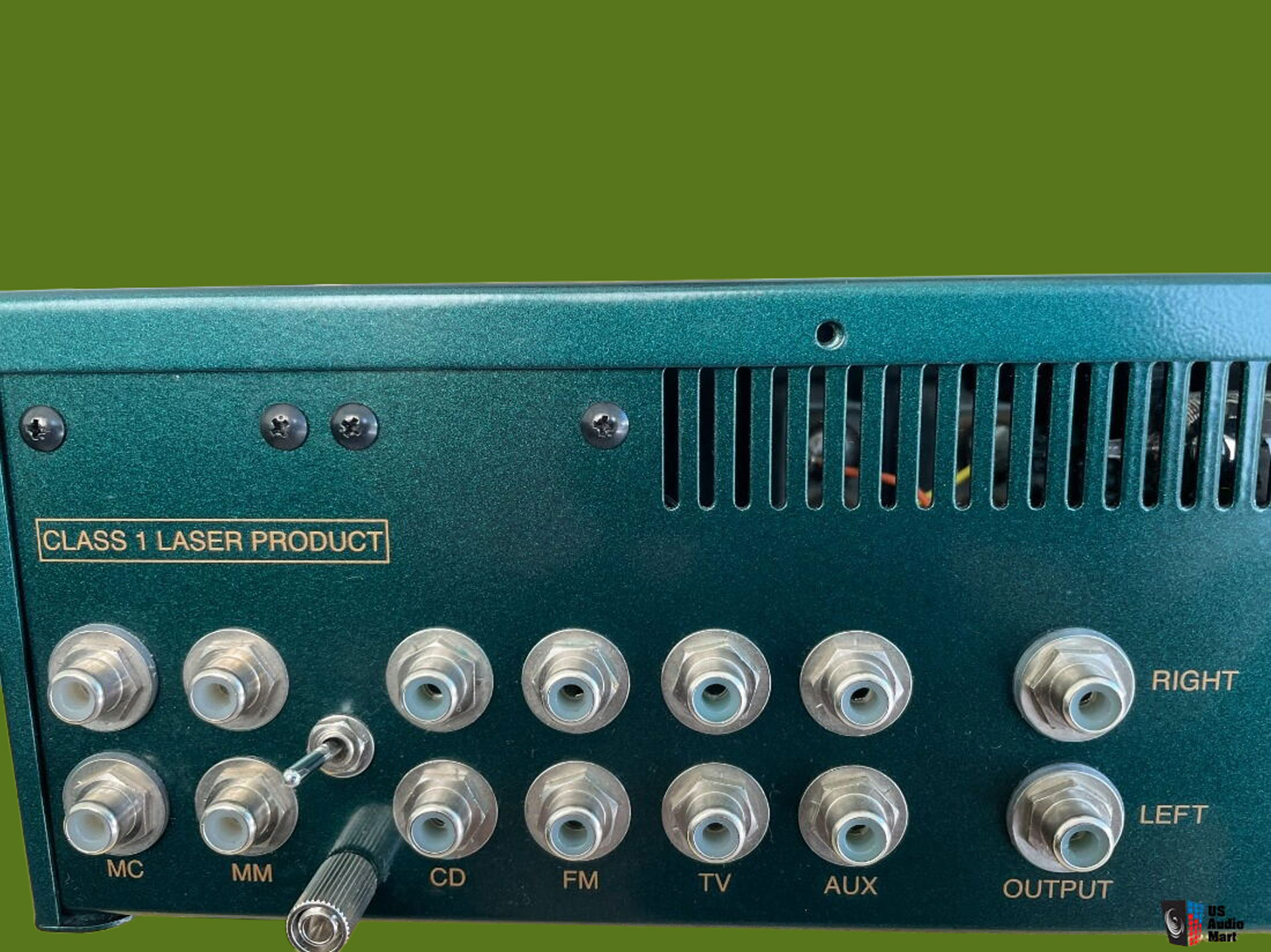

• Other Inputs: AUX, FM, TV, CD (RCA pin jack).
• S/N Ratio: 119dB, line section: No NFB.
• Frequency Response: 20Hz - 20KHz
• Output Level/Impedance: 5V/600Ω (RCA pin jack).
• Power Consumption: 100V-80W
• Power Supply: AC100V, 50/60 Hz
• Dimensions: W 350 × H 120 × D 310 mm (per unit)
• Weight: 7.5Kg

NOTE: The English language specifications note the MM impedance as 47KΩ rather than 100KΩ

Additional Details:

• MC step up via onboard amorphous-core SUTs
• Denki mains transformer

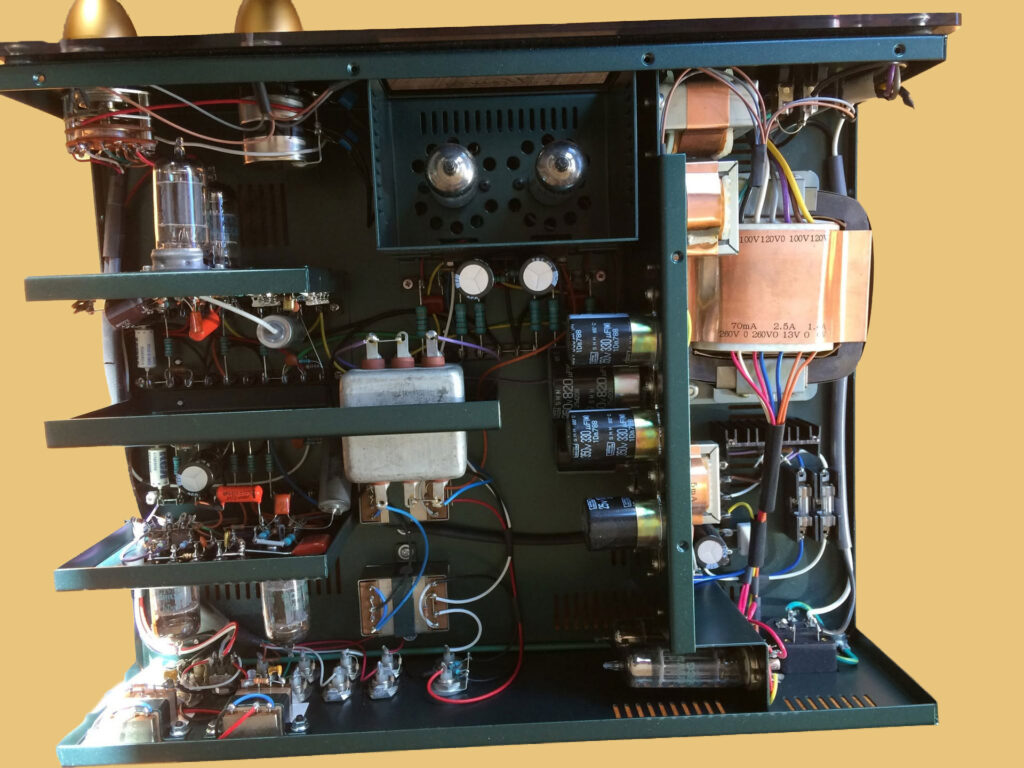

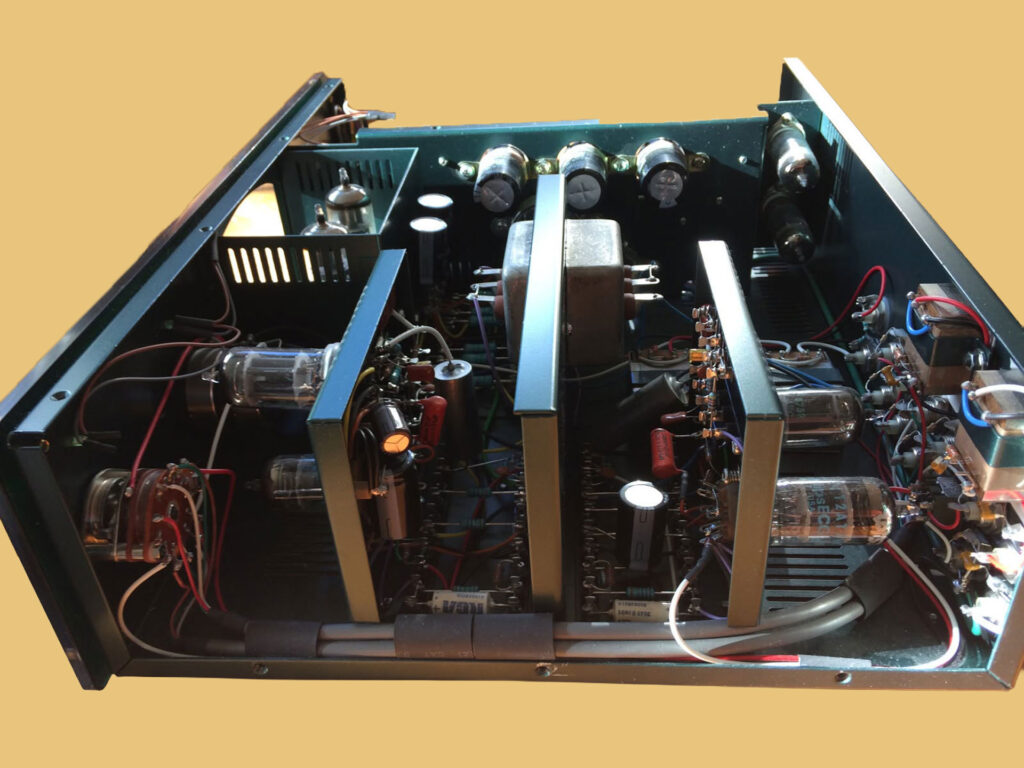

• Tube complement (per channel):
1 x 6x4 Philips rectifier
1 x JAN Philips 6189W phono stage
1x JAN Philips 12AT7 phono stage
1 x Telefunken LCP86 line Stage
• Tocos (Tokyo Cosmos) carbon composite volume control
• Allen-Bradley resistors; RCA, Sprague, West-Cap, and General Electric capacitors

• The Masseto can be modified to add a mono phono input at the cost of a stereo input. This has been done by Ken Shindo for at least one client.
Remove the hot leads from a chosen stereo input.
Jump the left channel of the phono input to the left channel of the chosen stereo input.
Jump the chosen inputs' left and right channel tabs together.

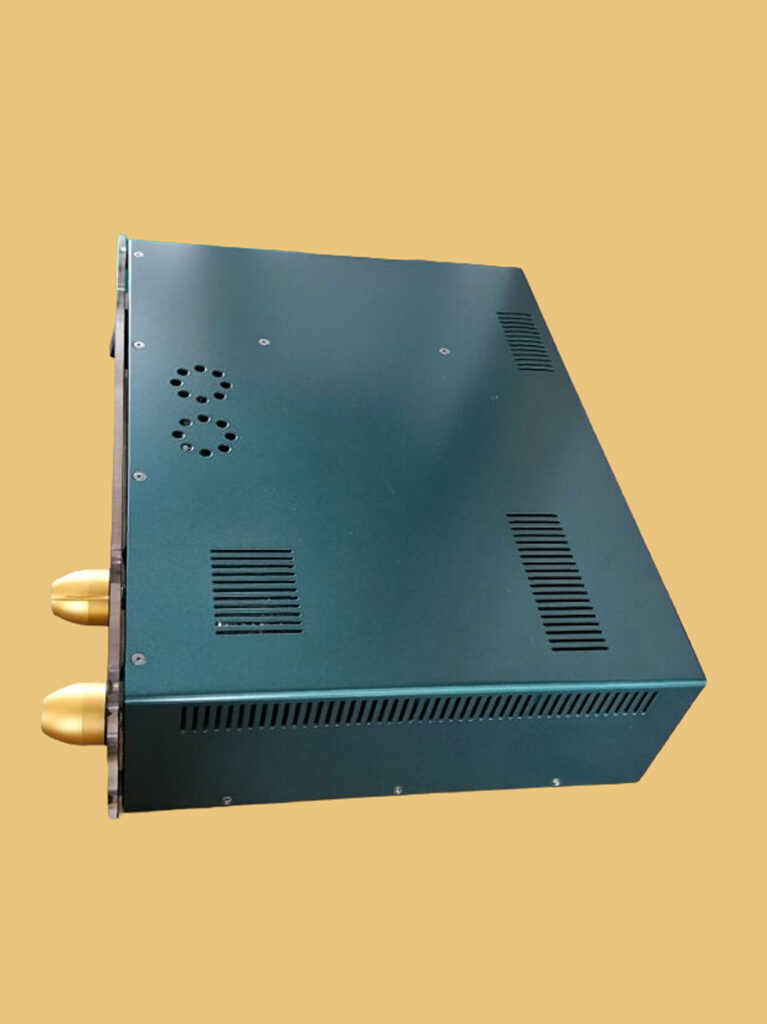

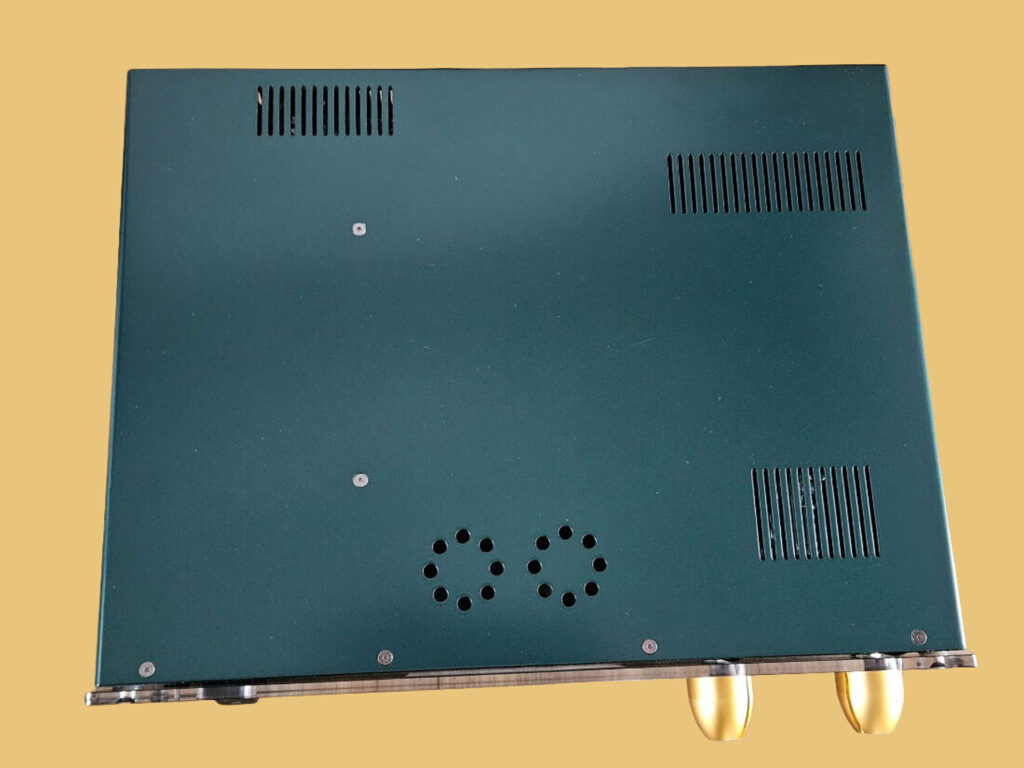

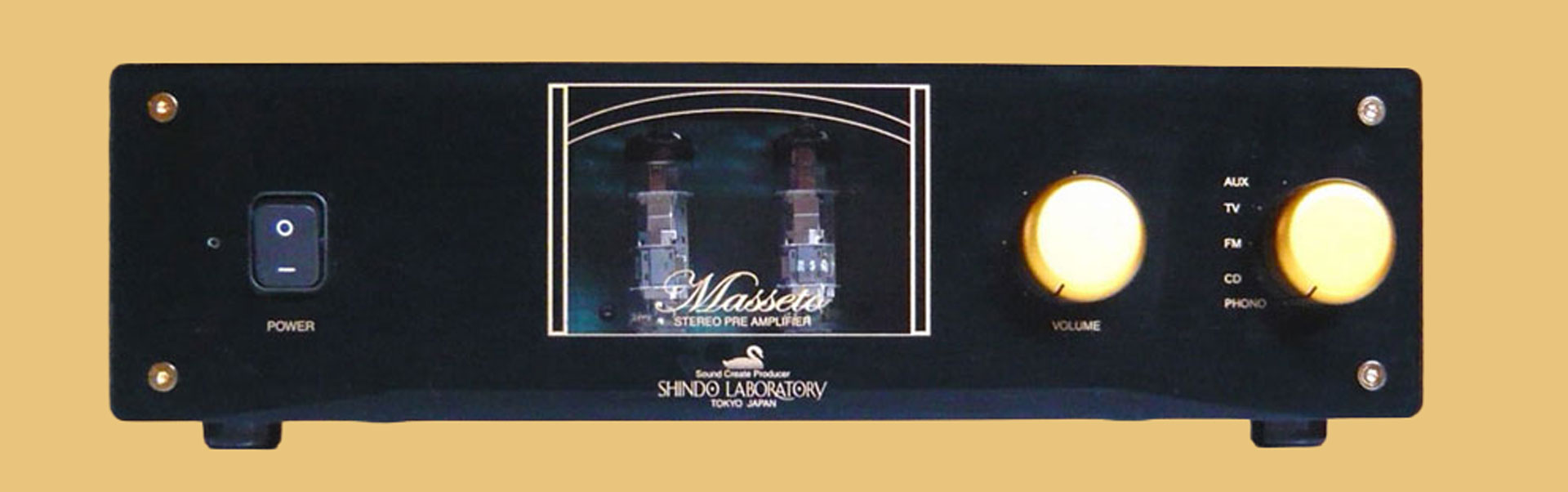

Around 2010 the front panel was reworked to add the gold-outlined proscenium a motif Shindo started using after 2007. The top plate and knobs are changed ( you'll see either 'flats' or 'cones' ) and a through-plate LED is added next to power switch. Most noticeably the top adds rings of holds above the line stage tubes.

The Masseto is removed from the Shindo website in April of 2016.

Description:

None available

Specifications, Shindo Laboratory website, English, 2016:

• Input Sensitivity/Impedance:
Phono MC (pin jack): 0.2mV/2-100Ω
Phono MM (pin jack): 3mV/100KΩ.
Phono input selectable via rear switch

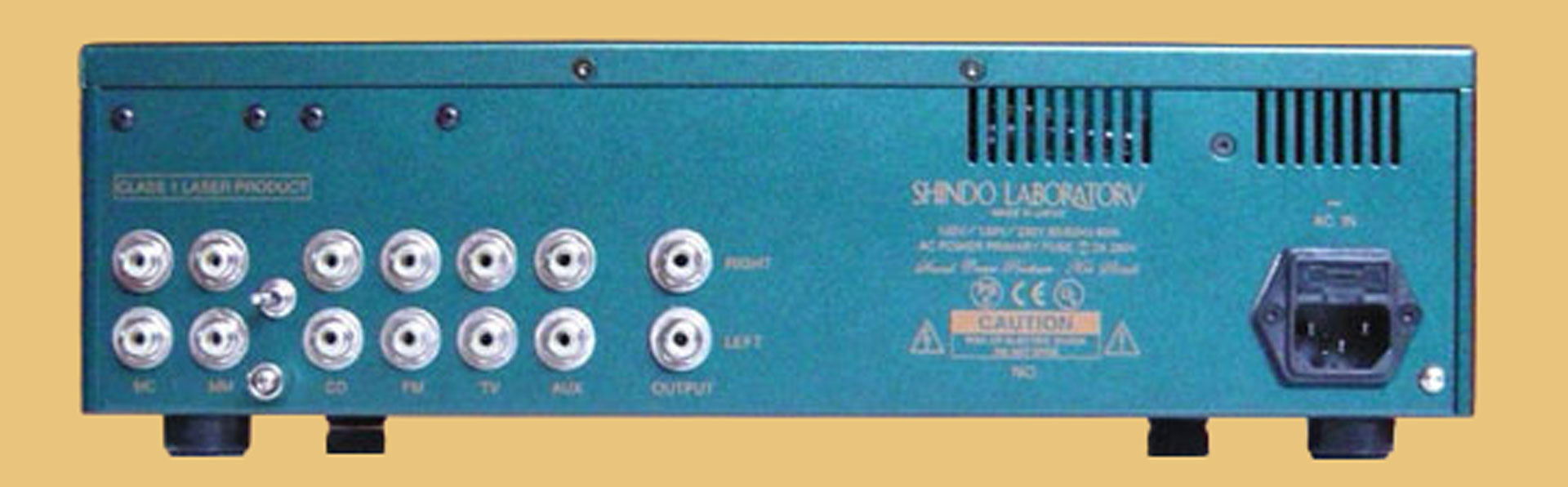

• Other Inputs: AUX, FM, TV, CD (input terminal pin jack).
• S/N Ratio: 119dB, line section: No NFB.
• Frequency Response: 20Hz - 20KHz
• Output Level/Impedance: 5V/600Ω (pin jack).
• Power Consumption: 100V-80W
• Power Supply: AC100V, 50/60 Hz
• Dimensions: W 350 × H 120 × D 310 mm (per unit)
• Weight: 7.5Kg

Additional Details:
